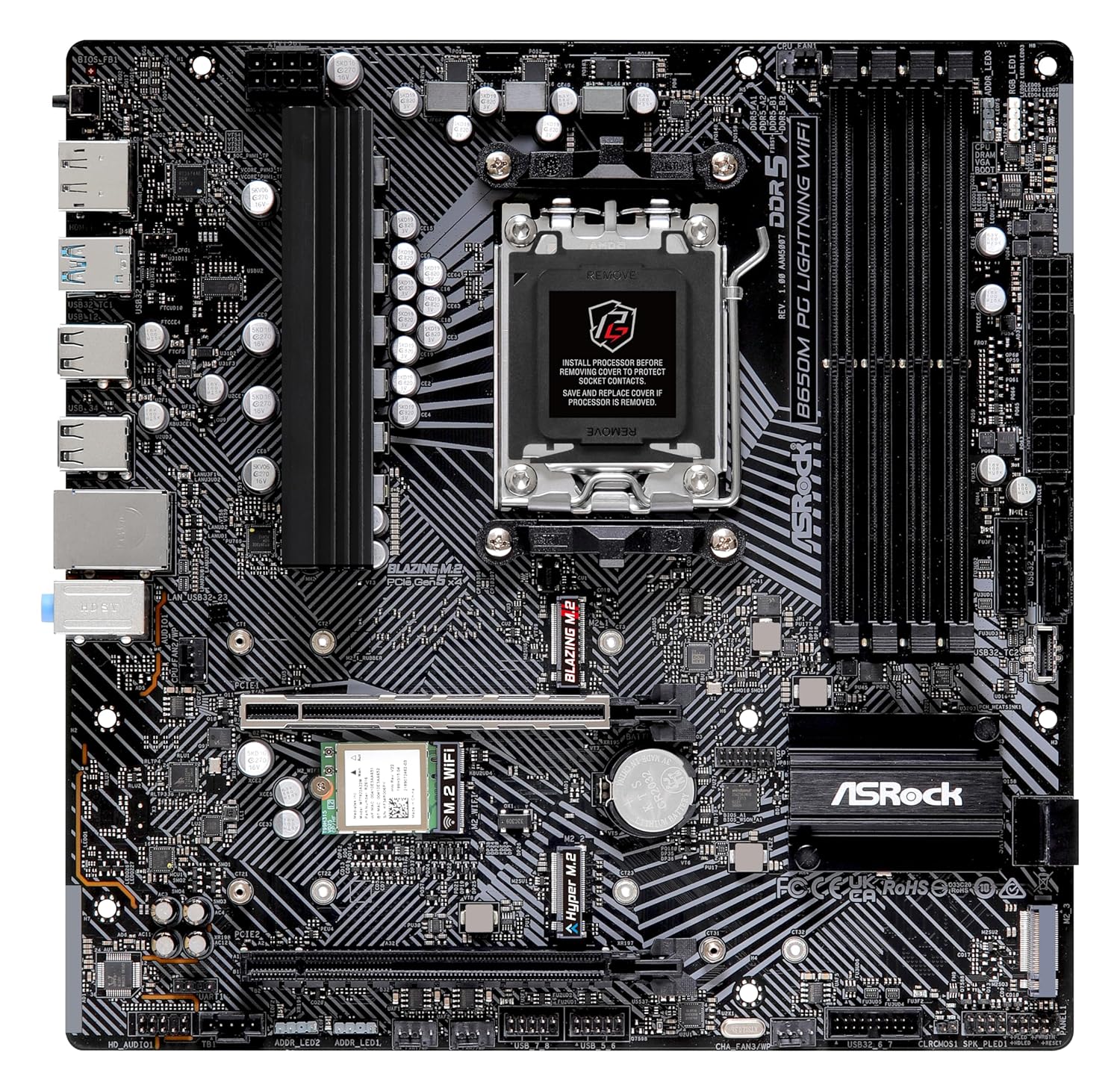

ASRock Motherboard B650M PG Lightning WiFi AMD Ryzen 7000 Series CPU Compatible (Soket AM5) B650 Micro ATX Motherboard with Bluetooth

Price: ₹20,000 - ₹13,999.00
(as of Sep 30, 2024 20:30:38 UTC – Details)

Socket AM5 RyzenTM 7000 Series Processors
Chipset: AMD B650
Form Factor: Micro ATX Form
Memory Specification 1: 4 x DDR5 DIMM Slots
Memory Specifications 2: Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max capacity of system memory: 192GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Power Phase: 6 + 2 + 1 Power Phase, Dr.MOS.
GPU Function: Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU).
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 andmax. resolution up to 4K 120Hz
Graphics Output: HDMI, DisplayPort
PCIe X16: 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
【PCIE X1】-
OC: Yes.
SLI.
Cross Fire: Yes
Sound Function: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
USB 2.0: 8 USB 2.0 (4 Rear, 4 Front).
USB 3.2Gen1 (USB3.0) 5Gb/s: 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
[USB3.2Gen2/Thunderbolt3 10Gb/s] 1 USB 3.2 Gen2 Type A+C (Rear),
【USB3.2Gen2x2 Type-C 20Gb/s】-
Thunderbolt 4 (USB 4.0)
Thunderbolt 4 Header
[SATA3] 4
M.2 Slots: 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2).
【M.2 Slot Heatsink】1 Blazing M.2 (PCIe Gen5 x4),
(M.2 Wifi) –
Wireless LAN (Wi-Fi): 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band* support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
LED: PolychromeSYNC

Supports AMD Ryzen 7000 Series Processor (AM5)
Micro-ATX Gaming Entry Model with B650 Chipset
Equipped with Bluetooth & Wireless Wi-Fi 6E for enhanced wireless functionality
High performance with heavy duty components and smooth power supply to the CPU
Auto installer for easy driver installation
