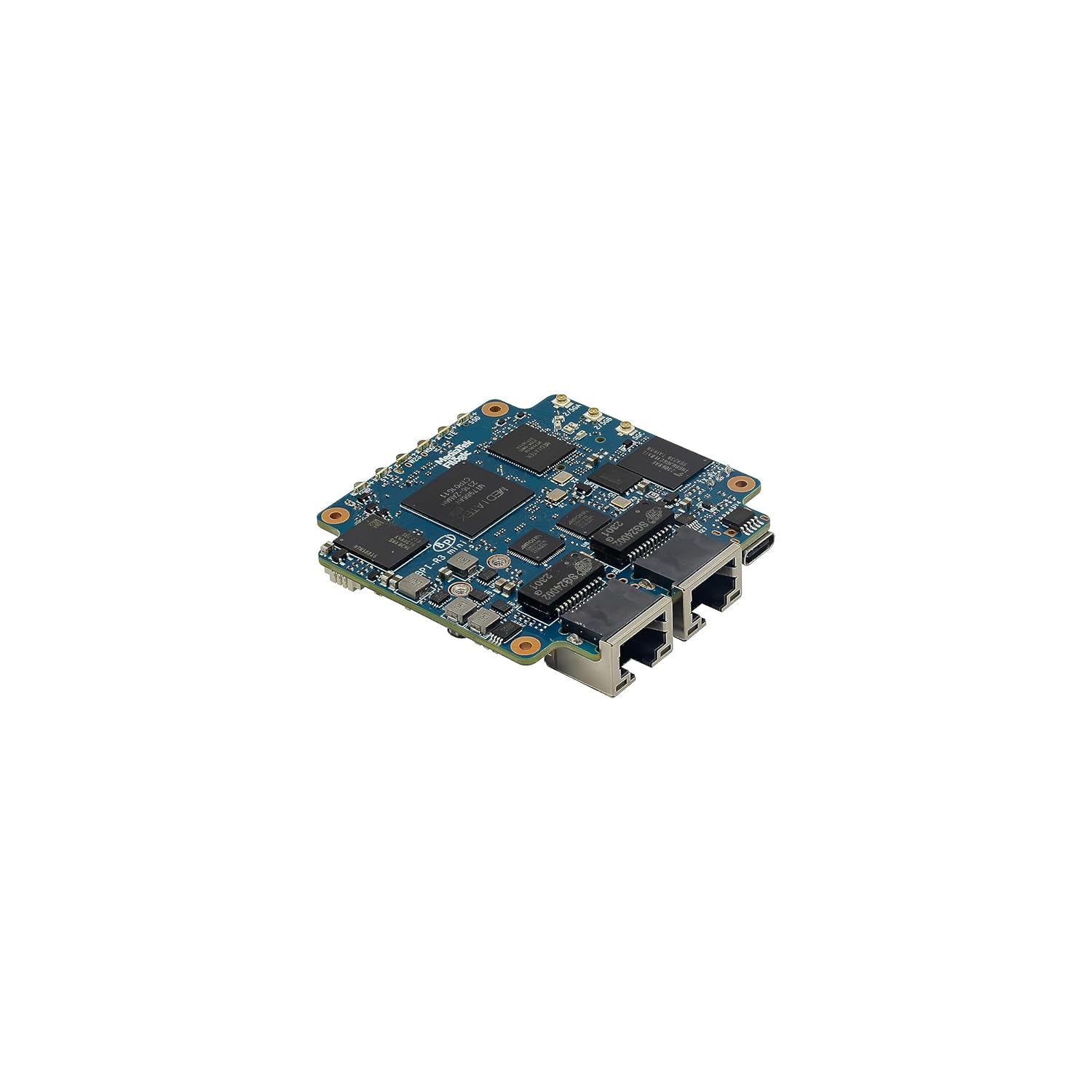

Banana Pi BPI-R3 Mini Wi-Fi 6 Open Source OpenWRT Router Board, Wireless Dual-Band Mini Wifi Router, MediaTek MT7986 (Filogic 830) CPU, Support 5X GbE and 2X 2.5GbE SFP for NAS Smart Home Gateway

Price: ₹18,626.27
(as of Sep 27, 2024 06:01:19 UTC – Details)

-Specification-
CPU: MediaTek MT7986A (Filogic 830) quad-core Arm Cortex-A53 processor
RAM：2GB DDR4
Storage: 8GB eMMC 128MB NAND flash
On board Network: 2x 2.5GbE Ethernet
Wifi:Wifi6 2×2 2.4G + 3×3 5G(MT7976C)
M.2 Key B: 1x M.2 Key B interface
M.2 Key M: 1x M.2 KEY-M PCIe inerface
USB: 1x USB 2.0
5x Leds: Power ,System, Wifi 2G ,Wifi 5G ,4G Lte ,SSD
DC Power: 20W/12V,USB TypeC PD
Size: 65 x 65 x 10 mm
Weight: 100g

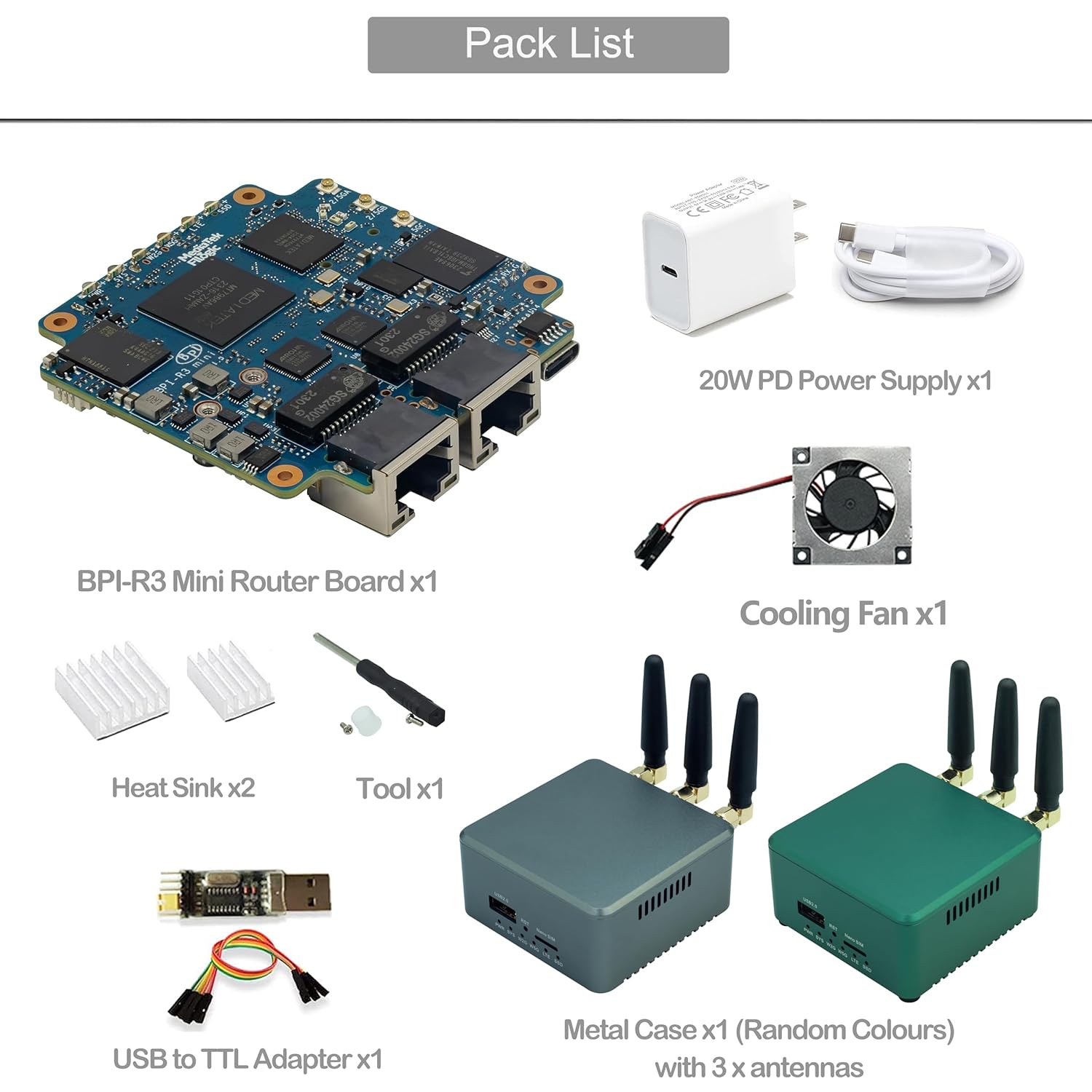

-Package Content-
Banana Pi BPI-R3 Mini Wi-Fi 6 Router Board x1
Metal Case x1
Cooling fan x1
Heat Sink x2
Serial Port x1
Dupont Line x1
Glue Stick Antenna x3
20W PD Power Supply x1
-Technical Support-

• Please click “WayPonDEV” and ask a question.

• Please leave the message “wpd#youyeetoo&com (#—>@,&—>.)” or skype: monica_9122.

• Please leave the message in our forum by “forum.youyeetoo.com/”.

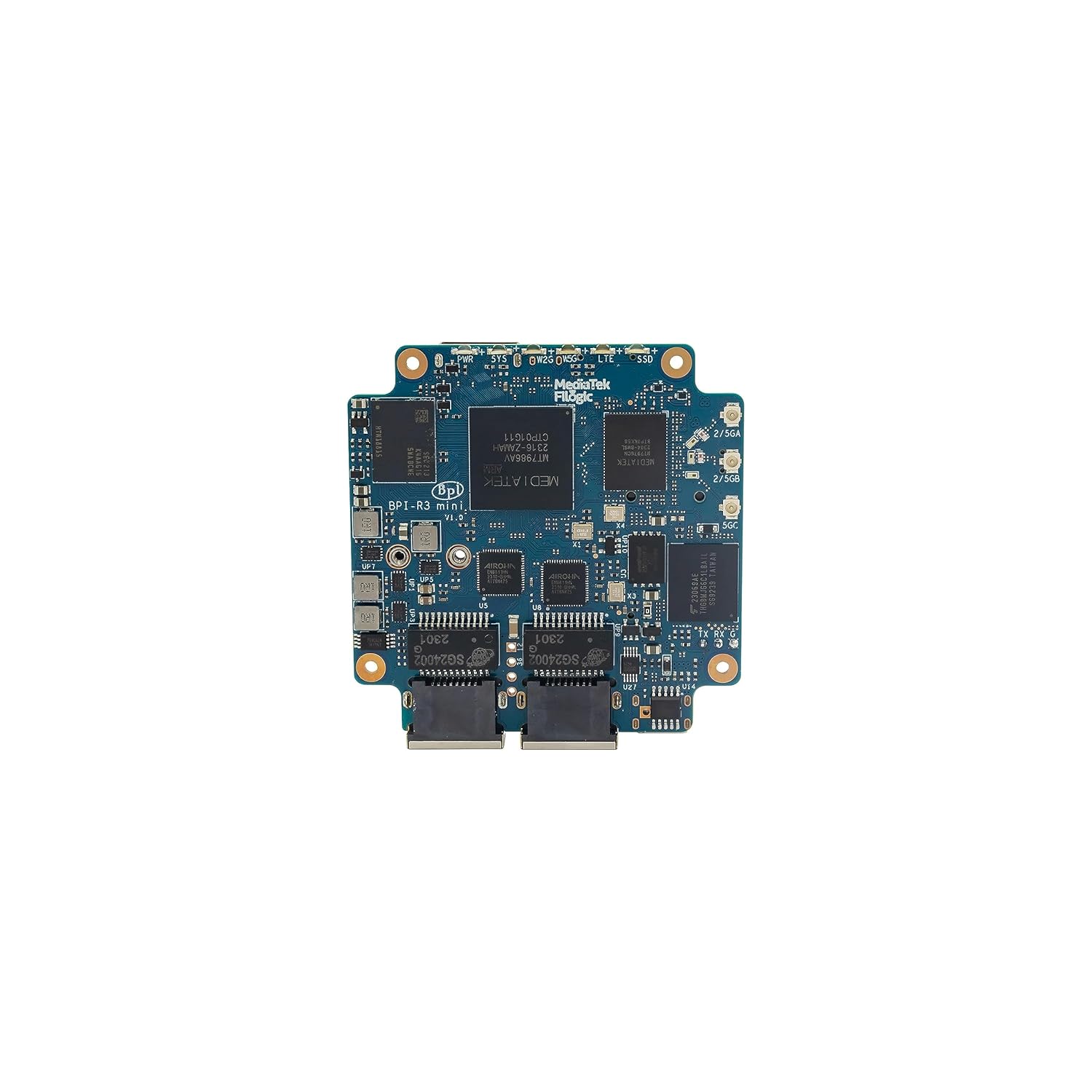

[MediaTek MT7986A CPU] Banana Pi BPI-R3 Mini Router board with MediaTek MT7986A (Filogic 830) quad core ARM Cortex-A53 chip up to 2GHz with up to 18,000 DMIPs of processing power. Onboard 2G DDR4 RAM and 8G eMMC flash, 128MB SPI Nand Flash, 2.5G PHY and MT7976C Chip. BPI-R3 mini router board can use Quectel RM500U-CN & RM520N-GL 5G modules.
[Support Dual-band Wi-Fi 6/2x 2.5GbE ] Banana Pi BPI-R3 mini open source support Dual-band Wi-Fi 6 2.4G/5G with MT7976C chip and support 2x 2.5GbE ethernet port at the same time. Which has many advantages over its predecessors, lower latency, larger bandwidth capacity and faster transmission rates. But note that WiFi and 5G can only be added via USB 3.0 dongles.
[Built-in Filogic 830 Chip] BPI-R3 Mini wireless router board built-in Filogic 830 Chip with “Mediatek FastPath” technology which Hardware Acceleration Engine for Fast and Reliable Wi-Fi Offloading, Multigigabit Transmission and Wireless Network Connectivity which suitable for streaming media, games, AR/VR and other low-latency applications.

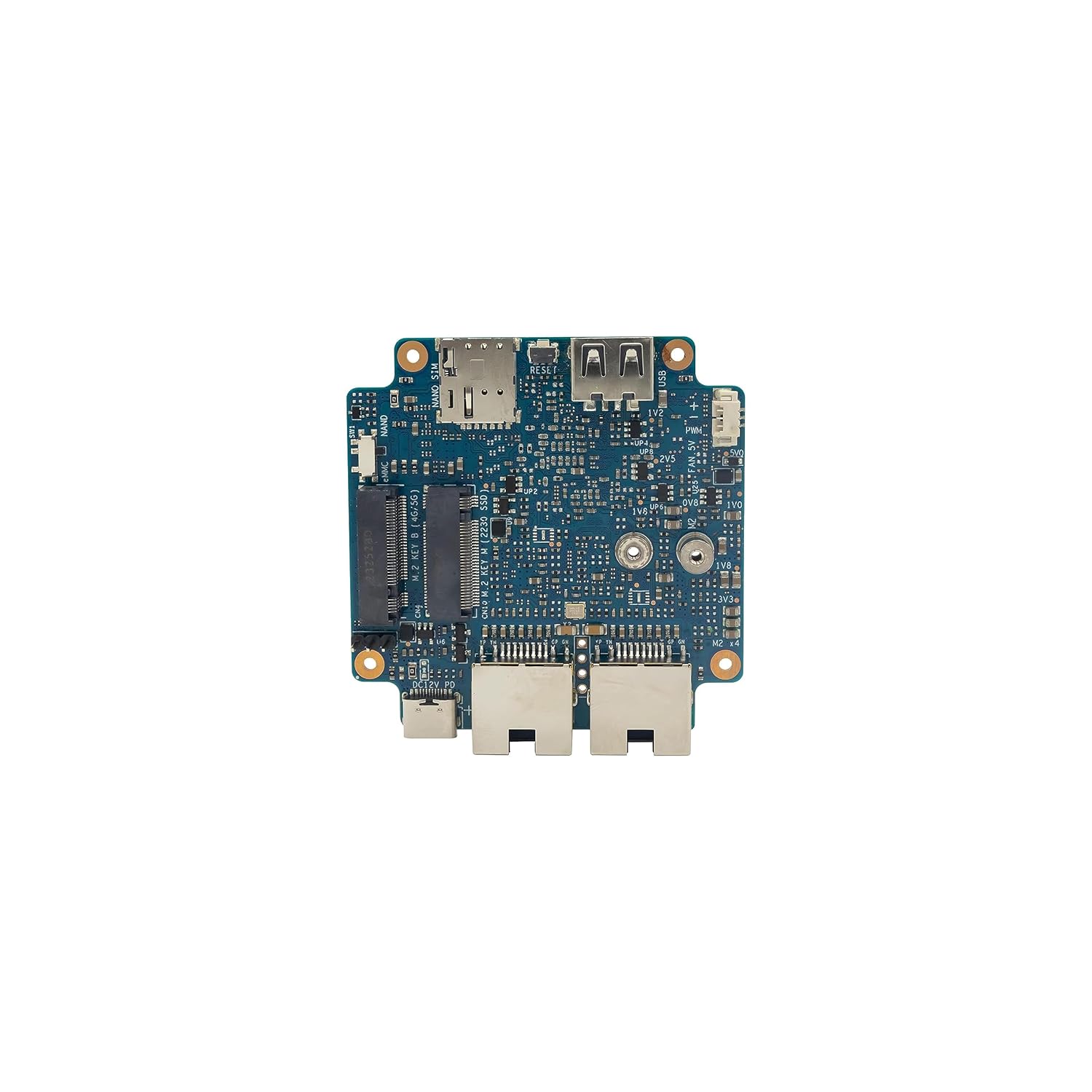

[Rich Peripheral interfaces] Banana Pi BPI-R3 mini open source development board with M.2 PCIe socket that can be used with an M.2 2230 NVMe SSD, 4G LTE or a 5G module. Also onboard M.2 Key B interface, USB 2.0 port, 2x 2.5GbE Gigabit ethernet port, serial peripheral interfaces (SPI), NANO SIM, 3-pin Debug UART and U.FL antenna connectors.
[Wide Application Scene] The BPI-R3 Mini wifi 6 dual-band router board is based on many of the same chips as found on the Banana Pi BPI-R3 router board, but with a much more compact design that makes it suitable as a 2.5GbE firewall, wireless router or wireless repeater, home security gateway, home automation gateway, NAS device,wireless internet device and more.
[SDK Document] Banana Pi BPI-R3 Mini Wi-Fi 6 Router Board support OpenWRT OS. Both Nand and eMMC are pre-burned with OpenWRT image (different from Wiki’s OpenWRT image), but the R3 Mini router board can be booted directly. Need to update BPI OpenWRT image, please open the link—Getting Started: “wiki.banana-pi.org/Getting_Started_with_BPI-R3_MINI” .
