Specification:

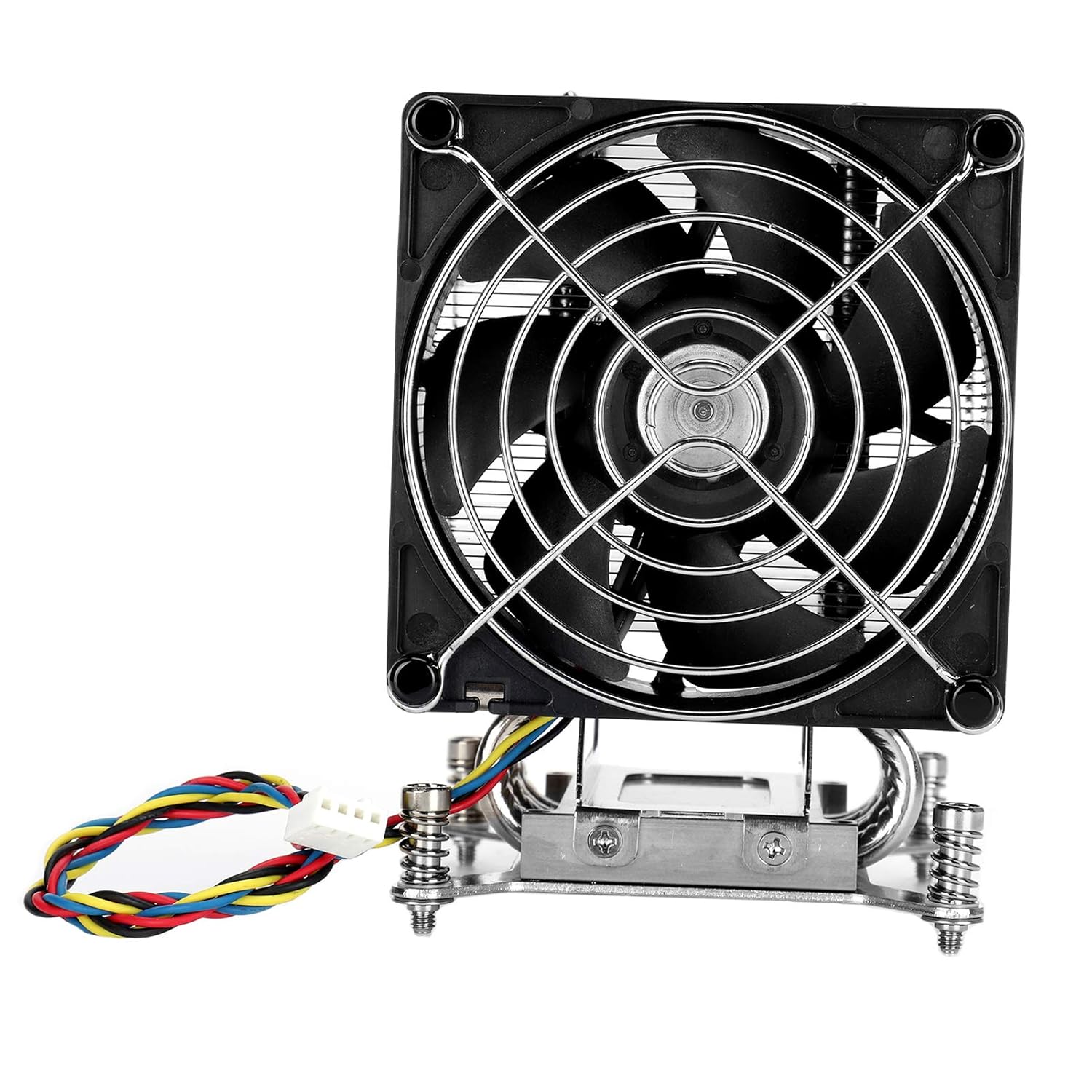

Item Type: CPU Cooler Fan
Model: SNK-P0050AP4
Type: Radiator
ILM Type: square, narrow
CPU Radiator Size: Approx. 105 x 93 x 126mm / 4.1 x 3.7 x 5in
Application: 4U X9 UP DP server
Socket Type: LGA 2011
Supported CPU: For Intel Xeon processor E5-1600/E5-1600 v2/E5-1600 v3 series, For Intel Xeon processor E5-2600/E5-2600 v2/E5-2600 v3 /E5-2600 v4 series
Supported CPU TDP: Up to 165 watts
Cooling Fan:
Speed Control: 4Pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Noise: 38.0 dB (A) at rated speed
Cooling Fan Size: Approx. 92 x 92 x 25mm / 3.6 x 3.6 x 1in
Location: Front
How To Use:
1. Take out SNK-P0050AP4 from the package. SNK. poo50AP4 supports for Intel Socket LGA2011 (SocketR) square and narrow independent loading mechanism (ILM). Before installing the heat sink, please check which ILM is equipped on the motherboard.
2. By default, the square ILM mounting bracket is fixed on the bottom of the radiator. If the motherboard is equipped with a narrow ILM, follow the instructions in Figure 1 to replace the default square ILM mounting bracket with a narrow ILM mounting bracket.
3. Remove the protective cover of the thermal interface material (TIM). The required amount has been pre-applied on the bottom of the heat sink. Check the pre-coated TIM for damage.
Package List:
1 x Cooling Base1 x Cooling Fan
1 x Bracket
1 x User Manual
1 x Screw
【Applicable Equipment】4u active CPU cooler for X9 slot R R 4U cooler LGA2011 square and narrow ILM for Xeon 3800 RPM.
【Scope of Application】Support for Intel Xeon processor E5‑1600/E5‑1600 v2/E5‑1600 v3 series.
【Features】Support for Intel Xeon processor E5‑2600/E5‑2600 v2/E5‑2600 v3 /E5‑2600 v4 series.
【Advantages】Can effectively reduce temperature generated by the CPU during operation and prolong the service life of computer.
【Performance】The fan rated speed is 3800RPM, low noise, stable and reliable performance.
