Ds Robotics® ESP32 Development Board Wireless WiFi + Bluetooth Dual Core Module for Low Power IOT, Clock Frequency 80 MHz to 240 MHz ESP32 Module with USB Cable

Price: ₹759.00
(as of Oct 19, 2024 12:39:14 UTC – Details)

Ds Robotics

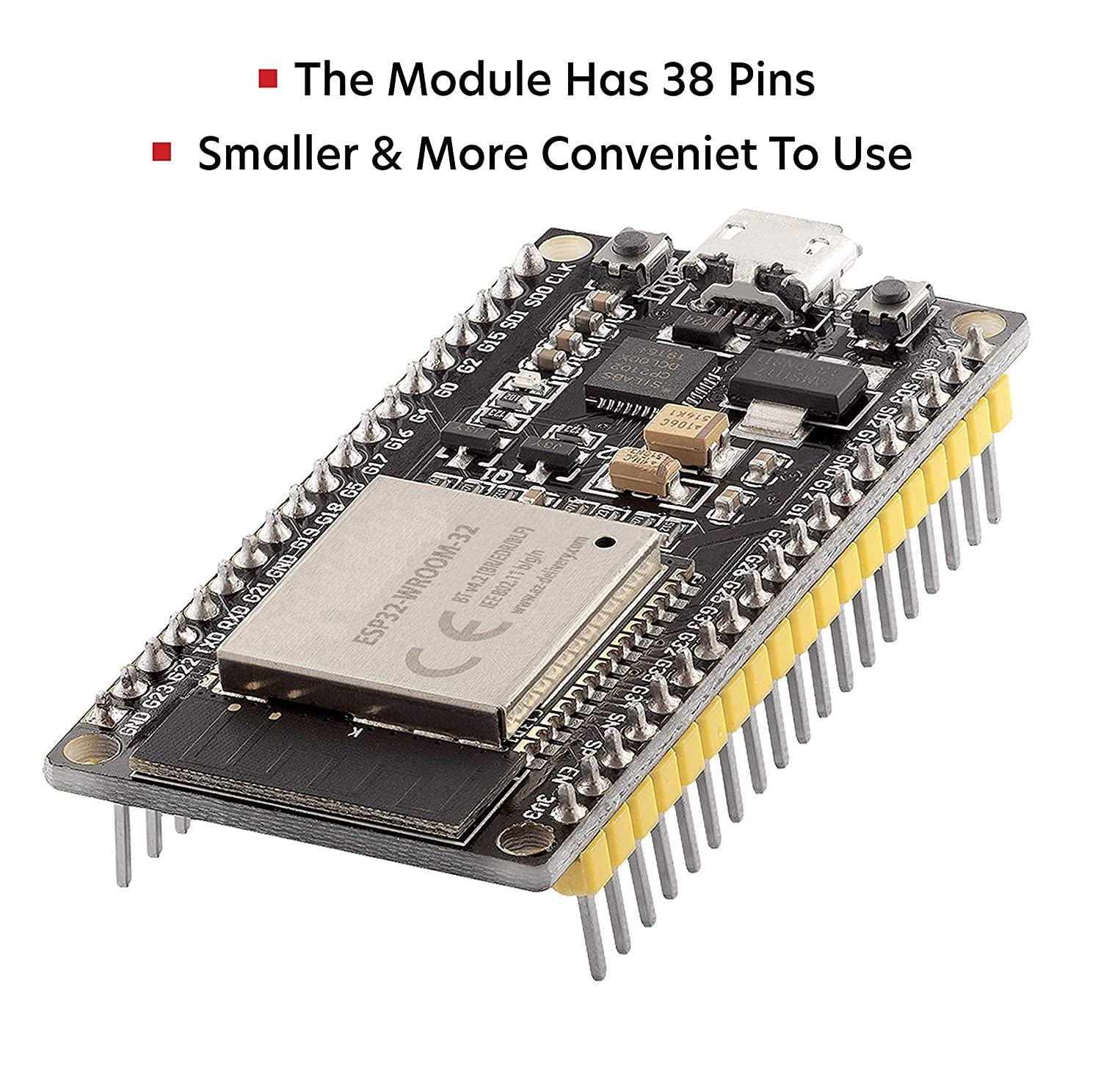

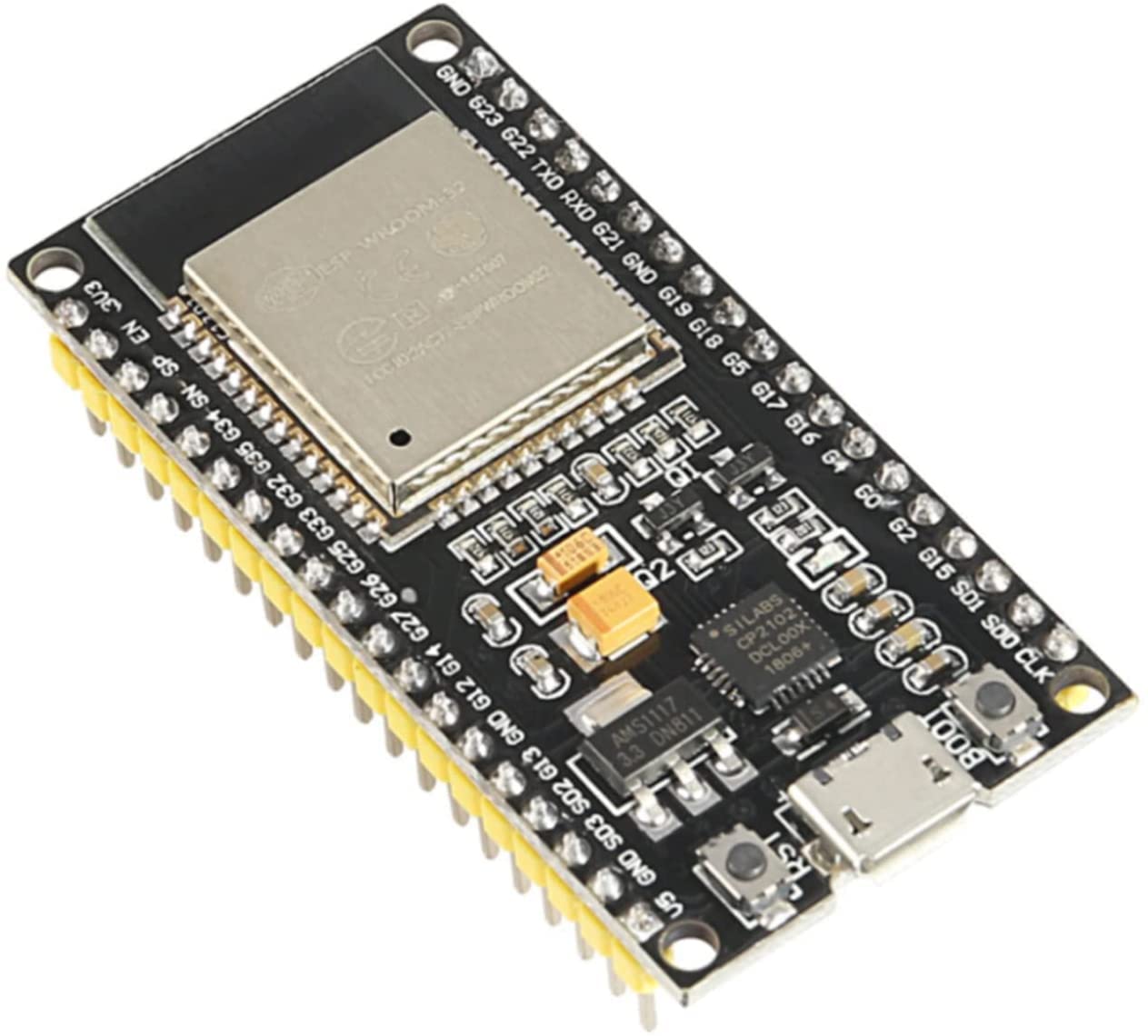

ESP-Wroom-32 WiFi BT SoC Based Development Board – NodeMCU

This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What’s more, all the I/O pins of ESP-WROOM-32 module are accessible via the extension headers.

Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.

Features

• Onboard ESP-WROOM-32 module
• Onboard CP2102, USB to UART converter
• USB port for power input, firmware programming, or UART debugging
• 2x19pin extension headers, breakout all the I/O pins of the module
• 2x keys, used as reset or user-defined

  Technical Specs

• WIFI module: ESP-WROOM-32
• Processor: ESP32-D0WDQ6
• Built-in Flash: 32Mbit
• Antenna: Onboard PCB antenna
• Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
• WiFi protocol: IEEE 802.11 b/g/n
• Bluetooth: Bluetooth 4.2
• Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
• WIFI mode: Station / SoftAP / SoftAP+Station
• Power supply: 5V
• Logic level: 3.3V
• Dimensions: 48.26mm x 25.4mm

This WiFi module has an ESP32-D0WDQ6 chip, which is expandable and customizable. Two CPU cores can be controlled individually or powered, and the card has CP-2102 stable USB to TTL chips to ensure normal serial communication.
It supports automatic download without having to manually switch between download and execution mode. The setting range for the clock frequency is between 80 MHz and 240 MHz.
ESP32-D0WDQ6 has two built-in 32-bit LX6 MCUs with low power consumption. Users can turn off the CPU power, use a power-saving coprocessor to constantly monitor the status of the peripheral device or determine if an analogue signal exceeds the threshold.
ESP32 also integrates extensive peripherals, including capacitive touch sensors, hall sensors, low-noise sensor amplifier, SD card interface, Ethernet interface, high-speed DIO / SPI, UART, I2S, I2C, etc.
ESP-WROOM-32 is a universal Wi-Fi + BT + BLE MCU module with powerful function and wide range of applications, it can be used for energy-saving sensor networks and demanding tasks such as audio coding, audio stream and MP3 decoding, etc. It supports development on Windows (Cygwin and MSYS32 simulation environment) and Linux.
