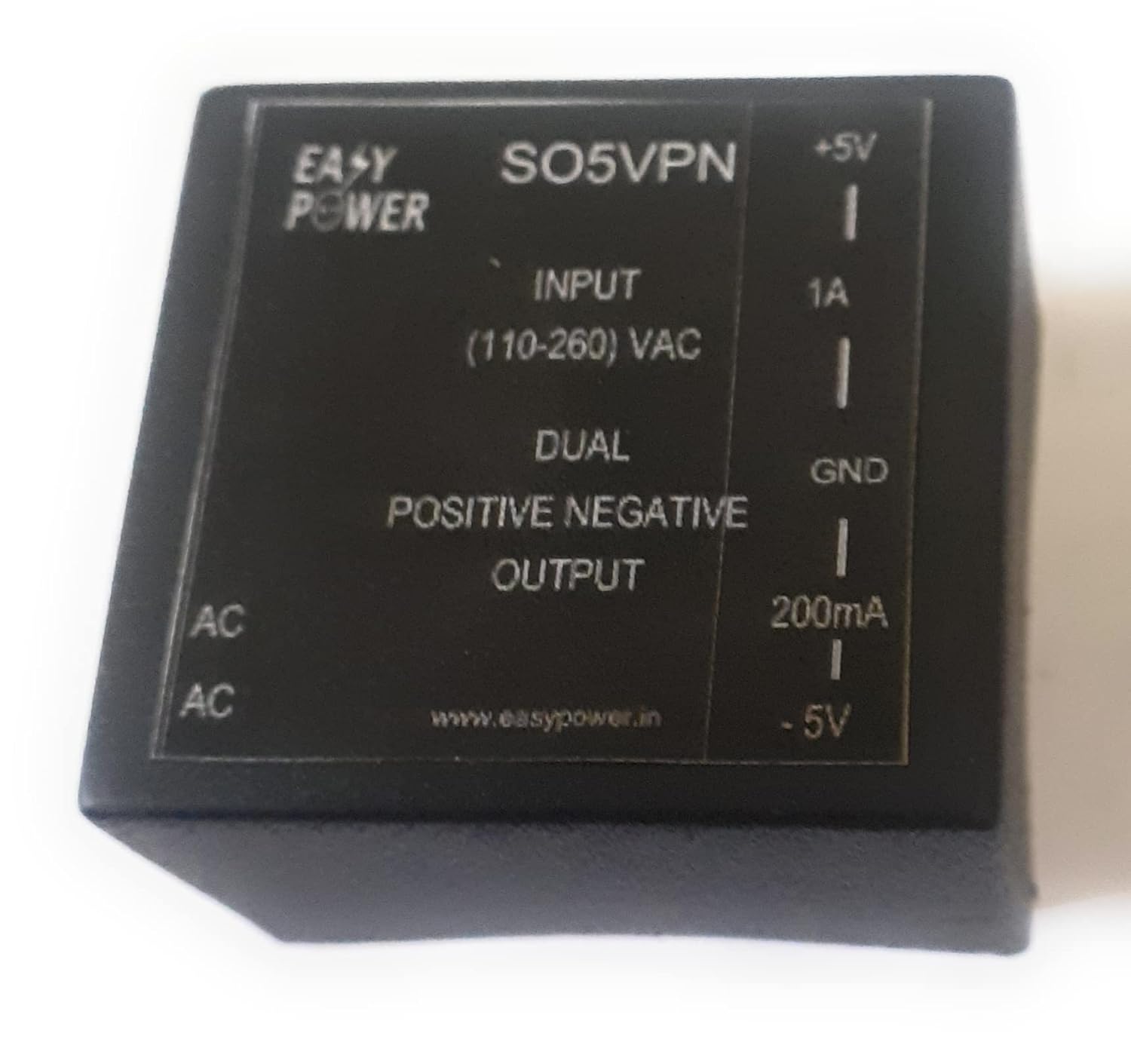

Easy Power (110-260) VAC t0 Dual +5 & -5 VDC Power Supply Module

Price: ₹300 - ₹155.00
(as of Oct 05, 2024 12:06:11 UTC – Details)

A positive negative dual output SMPS (Switch Mode Power Supply) is a type of power supply that provides both positive and negative voltages from a single unit. This compact and versatile dual output power supply module provides both positive and negative voltage outputs from a standard 230 V AC mains input. It’s ideal for various applications requiring bipolar voltage supplies, eliminating the need for separate positive and negative power modules. Features: Single Module Design: Saves space and simplifies circuit design by integrating both positive and negative voltage outputs into a single unit. 230 V AC Mains Input: Compatible with standard mains power for direct connection. Positive and Negative Outputs: Provides a versatile solution for applications requiring bipolar voltage supplies. Compact Size: Maintains a small footprint for easy integration into various projects. Applications: Preamplifiers: Provides clean and stable power for sensitive audio circuits. Operational Amplifiers: Offers bipolar voltage supply for op-amp circuits. Research & Development: Enables creation of custom power configurations for experimentation. Industrial Automation: Provides a reliable bipolar voltage source for industrial control systems (when used within appropriate safety enclosures). Additional Information: For detailed specifications, including output voltage ranges, current ratings, and efficiency, please refer to the product datasheet (available upon request). Safety precautions: This module operates with high voltage. Only qualified personnel should install and operate this device. Ensure proper installation within a suitable enclosure to prevent accidental contact with high voltage components. Benefits: Simplified Design: Reduces component count and simplifies circuit design. Space-Saving: Minimizes required PCB space. Cost-Effective: Eliminates the need for separate power supplies. Versatile: Offers a s
Input Voltage: 110 – 260V (AC) power supply
Dual Output Voltage: ±0.2 – +5/1A & -5/200mA V(DC)
Minimum current for +5V/1A is 100 mA
Useful in OPAMP and digital circuit application, convenient external lead use (bread board)
Full isolation input to output 1 kV
