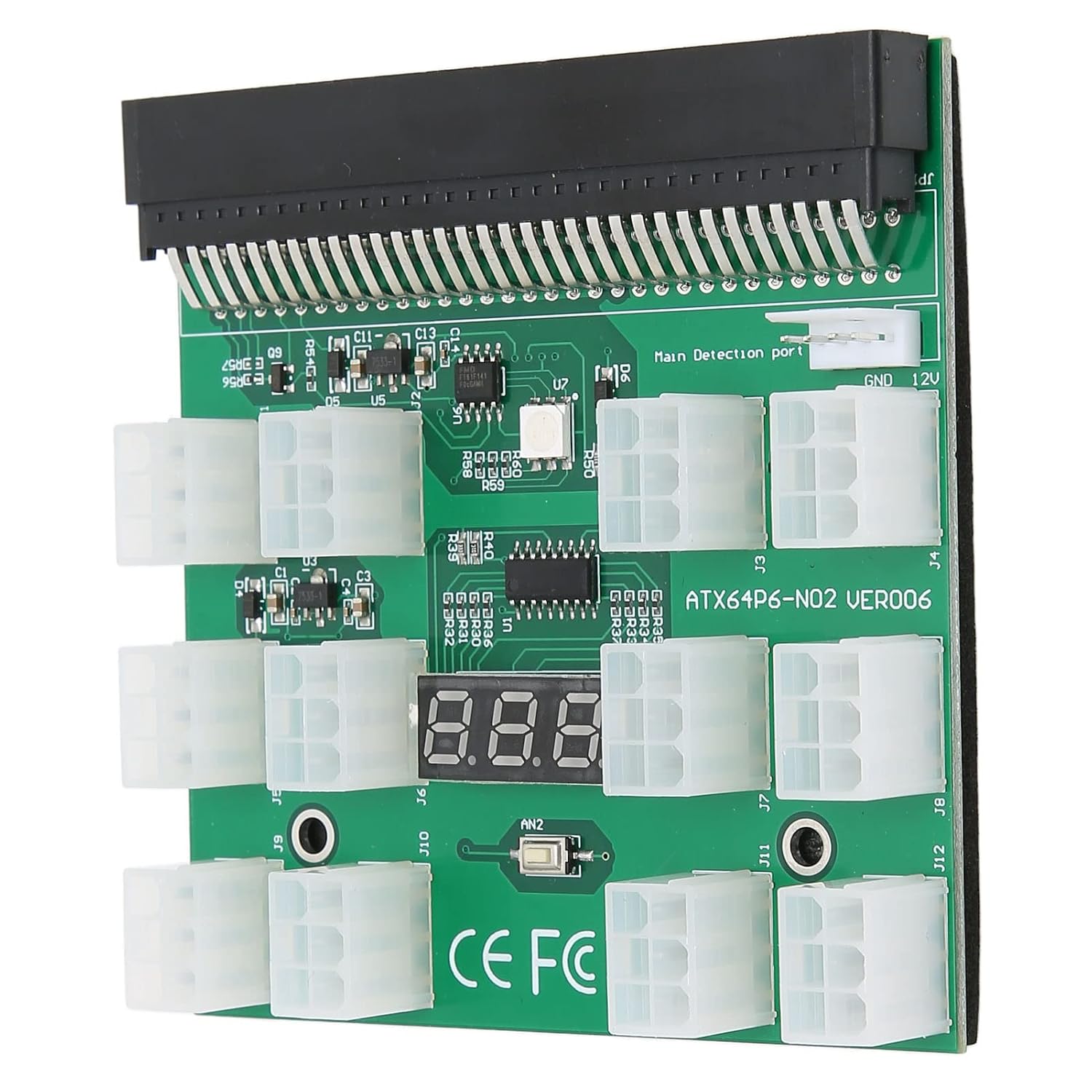

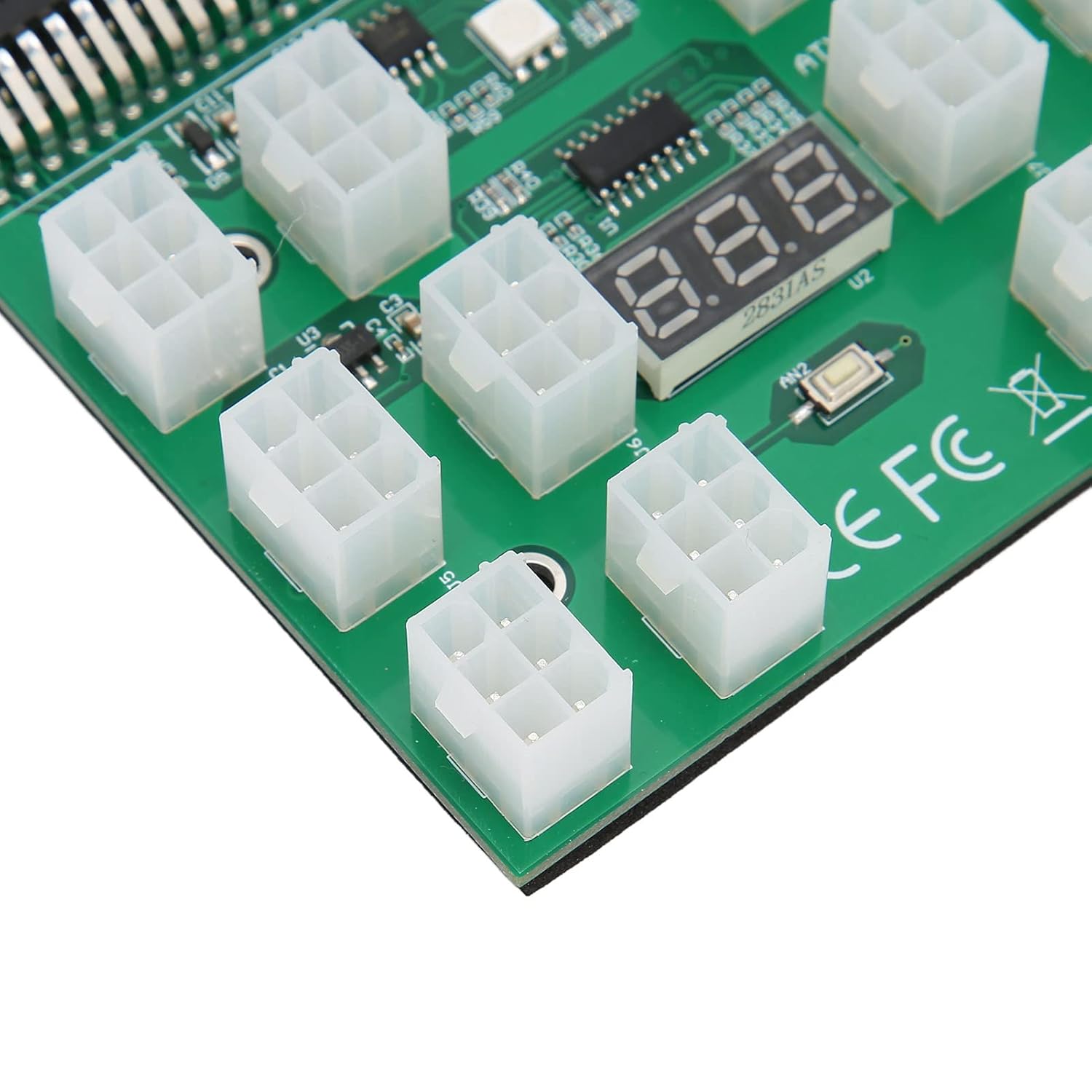

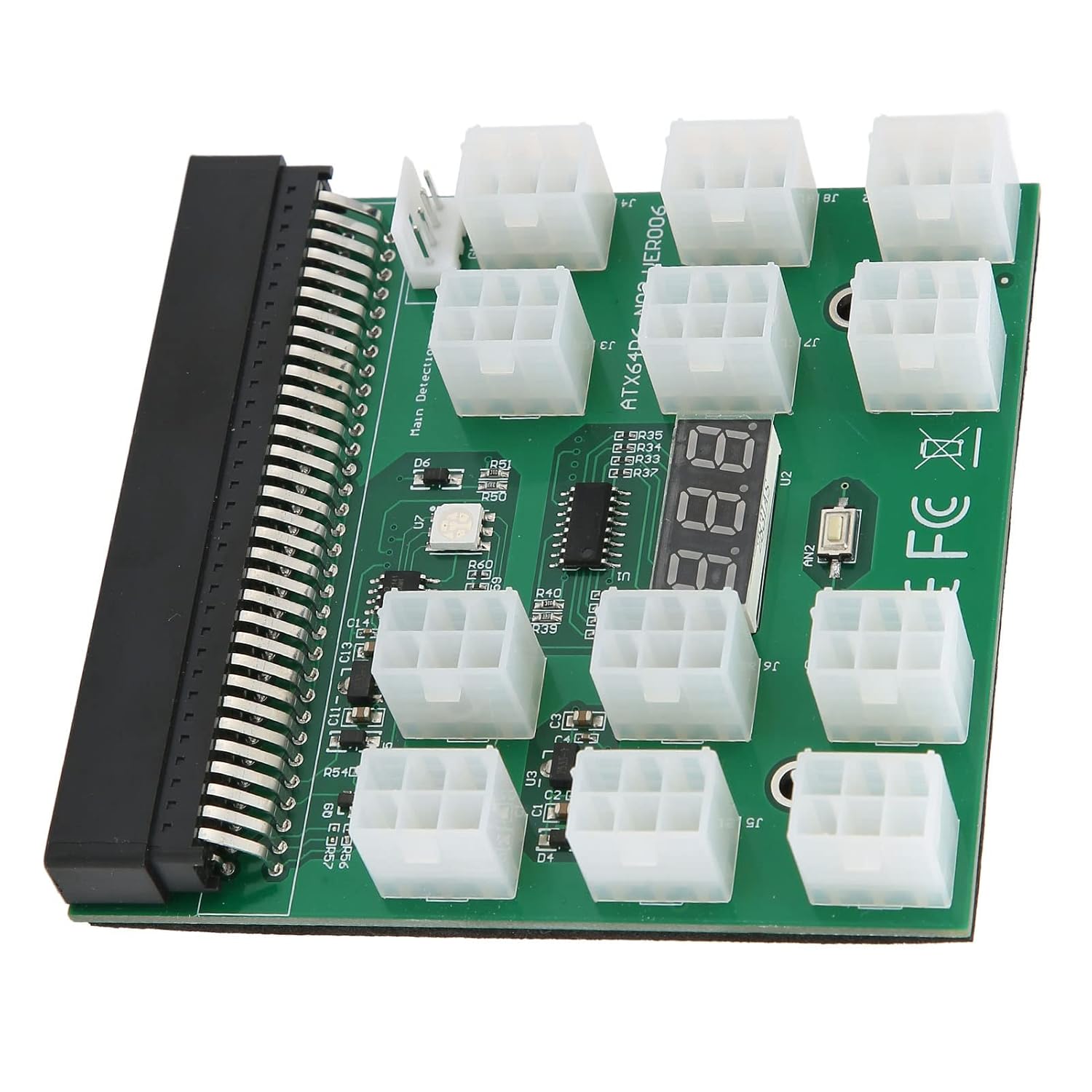

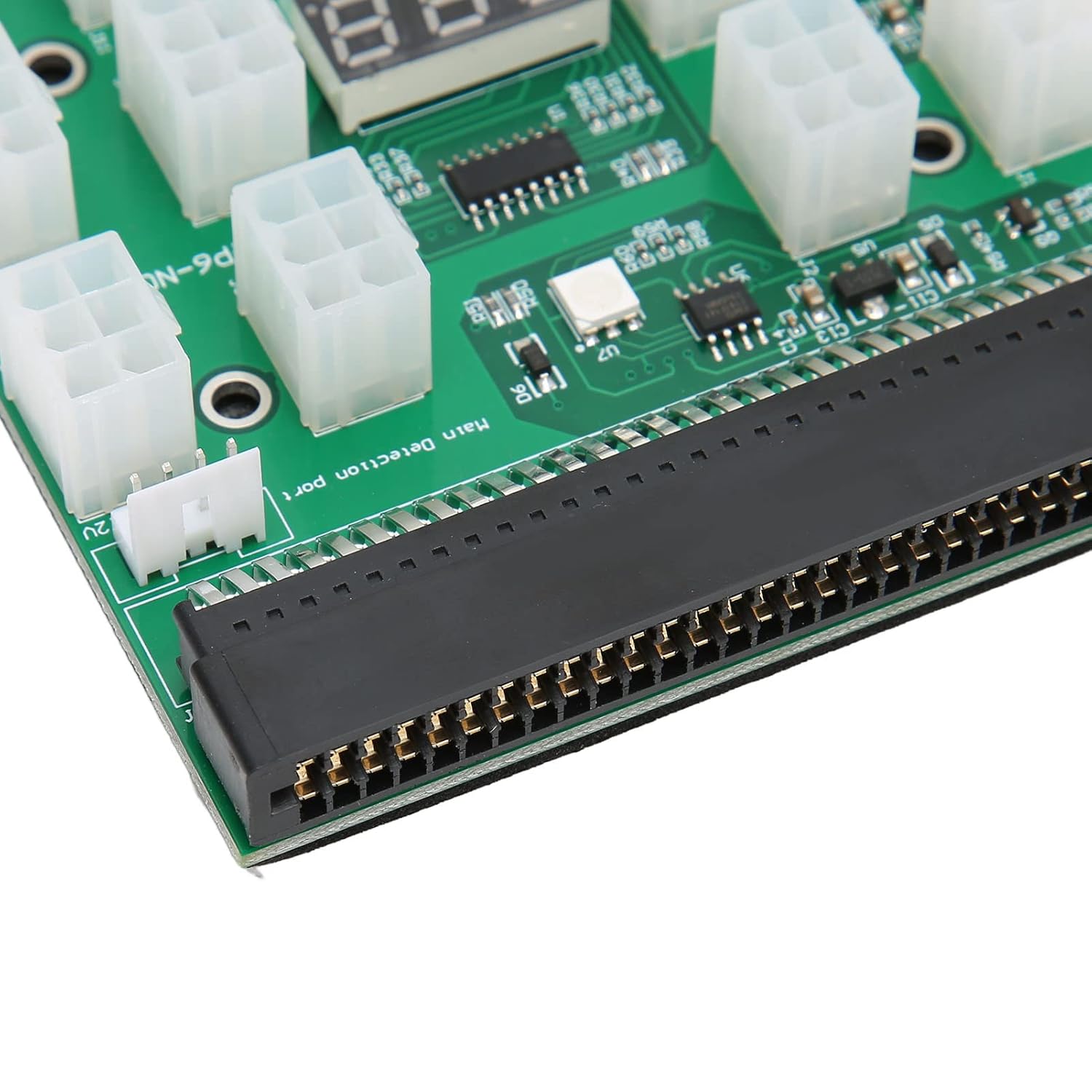

Jaerb Power Supply Breakouts Board, Great Flexibility Power Supply Breakouts Board Adapter High Performance PCB Process 12V 6 PIN for Computer

Price: ₹2,899 - ₹1,454.00
(as of Sep 25, 2024 00:41:10 UTC – Details)

Specification:
Item Type: Power Supply Breakouts Board Adapter
Material: PC
Suitable for Common Server Power Supplies:For DPS 1200FB A, DPS 1200QB A, PS 2751 5Q, PS 2751 LF 1F, HSTSN PL12, DPS 700LB D, PS 2112 5L, DPS 750RB A

How to Use:
Turn the switch to the left gear: the power will start working automatically when the power is turned on.
Turn the switch to the right position: it is used with the main power synchronous signal, and can be turned on or off synchronously.

Package List:
1 x Power Supply Breakouts Board Adapter

Note:
1.Supports up to 1600W power supply.2. In this paragraph, the switch has been improved to support the self starting of the power supply. For example: in the case of a sudden power failure, the power supply can start work by itself, saving the trouble of manually pressing the power on.

PCB Process: The power supply breakouts board adopts a multi layer PCB process. The PCB will not heat up under high current. It uses imported MOS tubes for switching to ensure the effectiveness of switching.
Wide Compatibility: Breakouts board is compatible with GPU mining power supply ,for 1200W/750W PSU. Such as DPS 1200FB A, DPS 1200QB A, PS 2751 5Q, PS 2751 LF 1F, HSTSN PL12, DPS 700LB D, PS 2112 5L, DPS 750RB A etc.
Great Flexibility: 6 PIN breakouts board module voltmeter LED display to show 12V power supply, electronic power on,off switch to turn on,off the PSU. Does not support remote power on,off.
High Performance: Breakouts board for GPU mining or powering up to 12 GPUs with a power supply. Onboard built in PCI E connector supports up to 12 PCI e 6Pin connections for quick and easy connection.
High Safety: Power supply breakouts board adapter adopts solid state capacitor filter, suitable for various server power supplies, and supports all common slot server power supplies.
