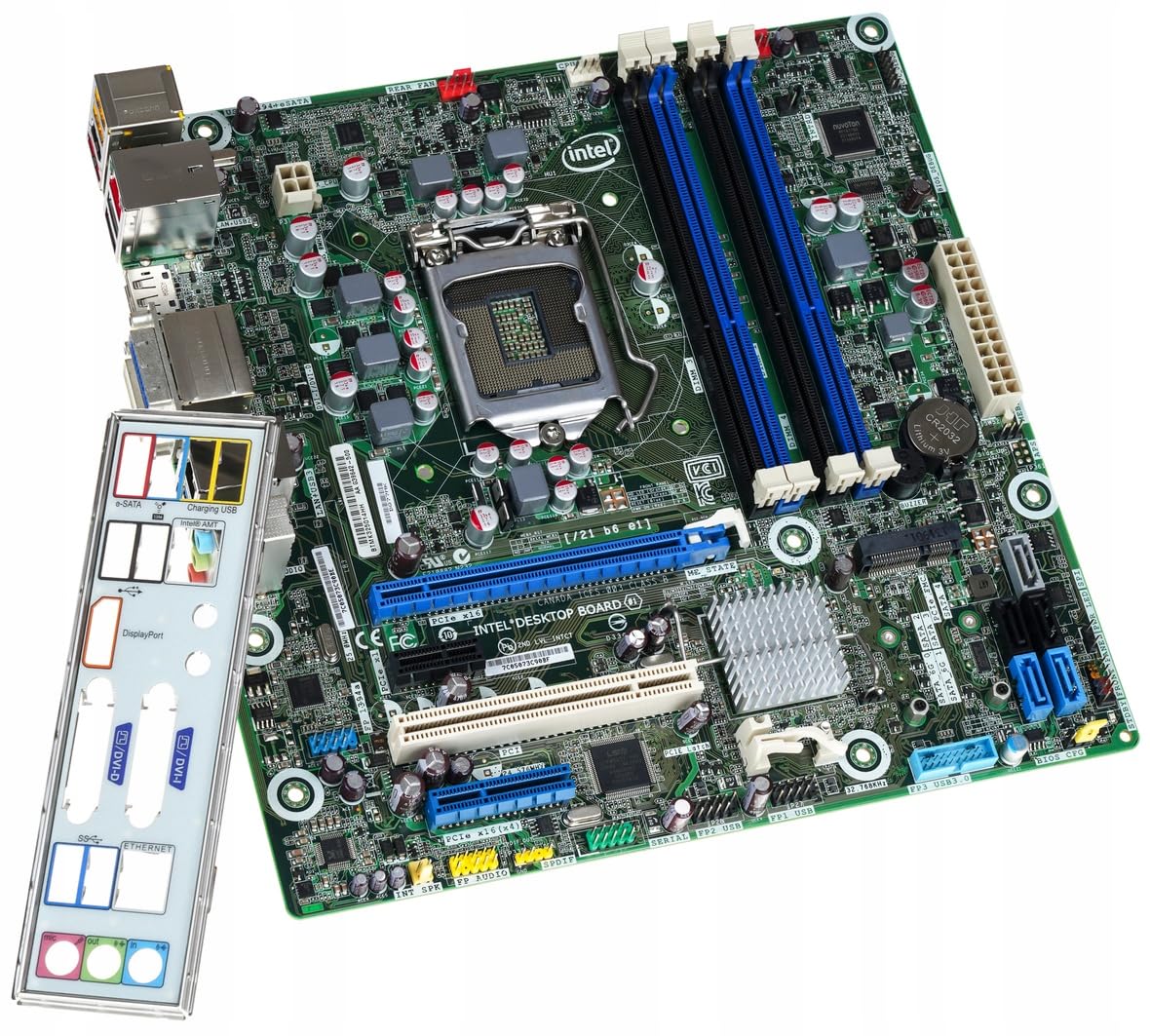

Motherboard DQ77MK. LGA 1155. 3rd & 2nd Gen CPU Support. DP/DVI/DVI D/USB 3.0. GIGA LAN. Dual. Max 32GB Ram Supported

Price: ₹14,999 - ₹8,999.00
(as of Oct 14, 2024 01:52:38 UTC – Details)

Essentials Product CollectionIntel Desktop Boards with Q77 Express Chipset Discrete Graphics1 PCIe 3.0 x16 Supplemental Information Marketing StatusDiscontinued Launch Date Q2’12 Extended Life Program (XLP)Yes Memory & Storage Max Memory Size (dependent on memory type) 32 GB # of Memory Slots4 Memory Types Dual DDR3 1333/1600 Max # of Memory Channels 2 ECC Memory Supported No I/O Specifications Graphics Output DP DVI-I DVI-D # of Displays Supported 2 # of USB Ports12 USB Revision 3.0/2.0 USB 2.0 Configuration (External + Internal)4,4 USB 3.0 Configuration (External + Internal)2,2 Total # of SATA Ports 6 Max # of SATA 6.0 Gb/s Ports2 # of eSATA Ports1 RAID Configuration 0,1,5,10 # of Serial Ports 1 Serial Port via Internal HeaderYes Audio (back channel + front channel)6,2 S/PDIF Out Connector1 Integrated LAN Dual 10/100/1000 Firewire 1,1 # of PATA Ports 0 # of Parallel Ports 0 Parallel Port via Internal HeaderNo # of PS2 Ports0 Expansion Options PCI Support 1 PCI Express Revision 3.0, 2.0 Max # of PCI Express Lanes 2 PCIe x1 Gen 2.x 1 PCIe x4 Gen 2.x 1 PCIe x8 Gen 2.x 0 PCIe x16 Gen 2.x 0 PCIe x1 Gen 1.x 0 PCIe x4 Gen 1.x 0 PCIe x8 Gen 1.x 0 PCIe x16 Gen 1.x 0 PCIe Mini Card Slot (Full Length)1 Package Specifications TDP 95 W Max CPU Configuration1 Board Form FactorMicro ATX Advanced Technologies Remote Wake Technology Yes HD Audio Technology Yes Matrix Storage Technology Yes Rapid Storage Technology Yes Security & Reliability vPro Eligibility Intel vPro Platform TPM Yes TPM Version 1.2 ME Firmware Version 8.0 Remote PC Assist Technology Yes Anti-Theft Technology Yes
DQ77 Series Motherboard
High Perfomance
Dual GIGA Lan
Usb 3.0
Support All 2nd And 3rd Generation Dualcore/i3/i5/i7 Processor
4X Ram Slot DDR 3.
Max 32GB Ram Supported
