Nano V3.0 Development Board CH340 Clone Compatible Model

Price: ₹400.00
(as of Dec 19, 2024 05:24:42 UTC – Details)

Product Description

Nano V3.0 ATmega328P CH340G Controller Development Board Module by OceanLabz

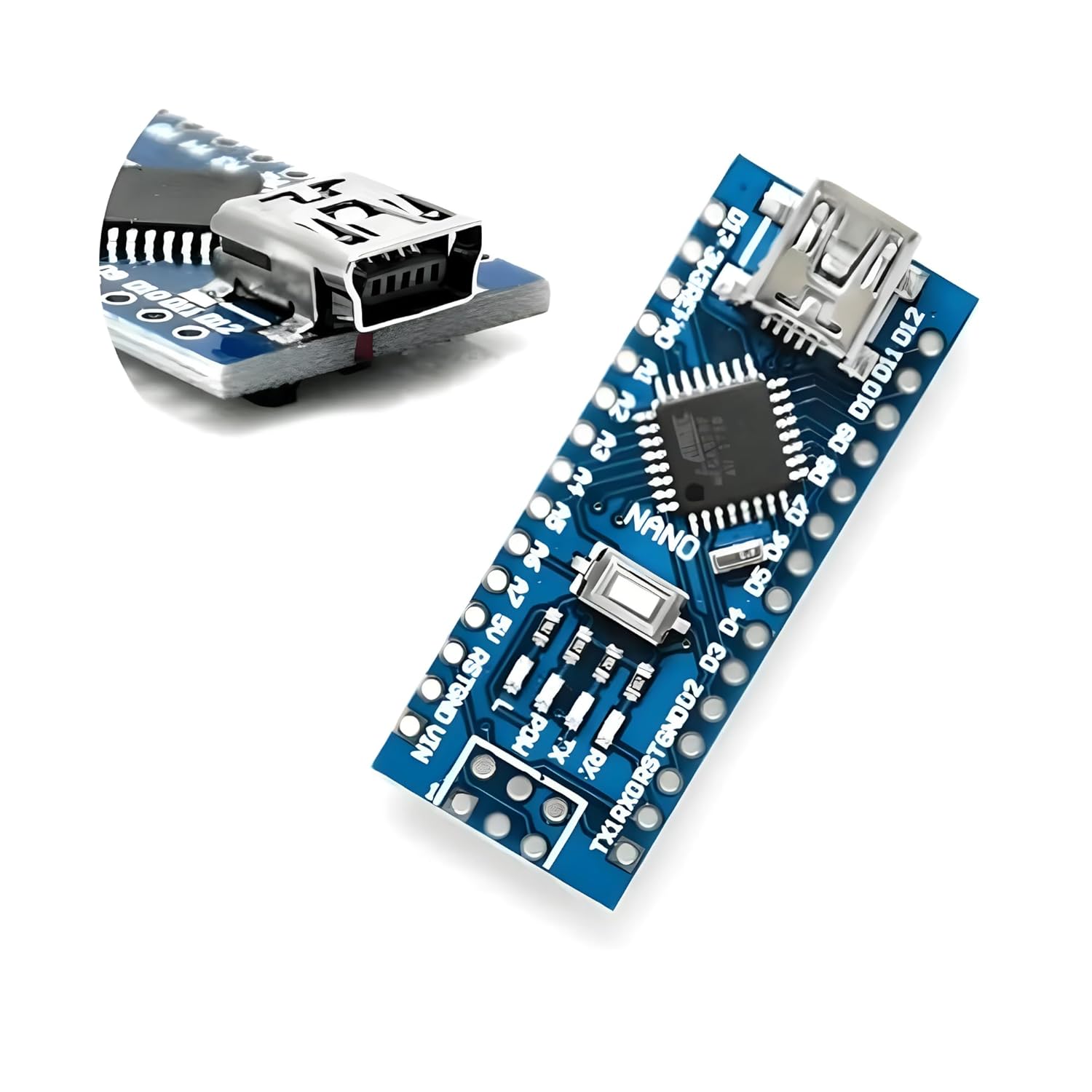

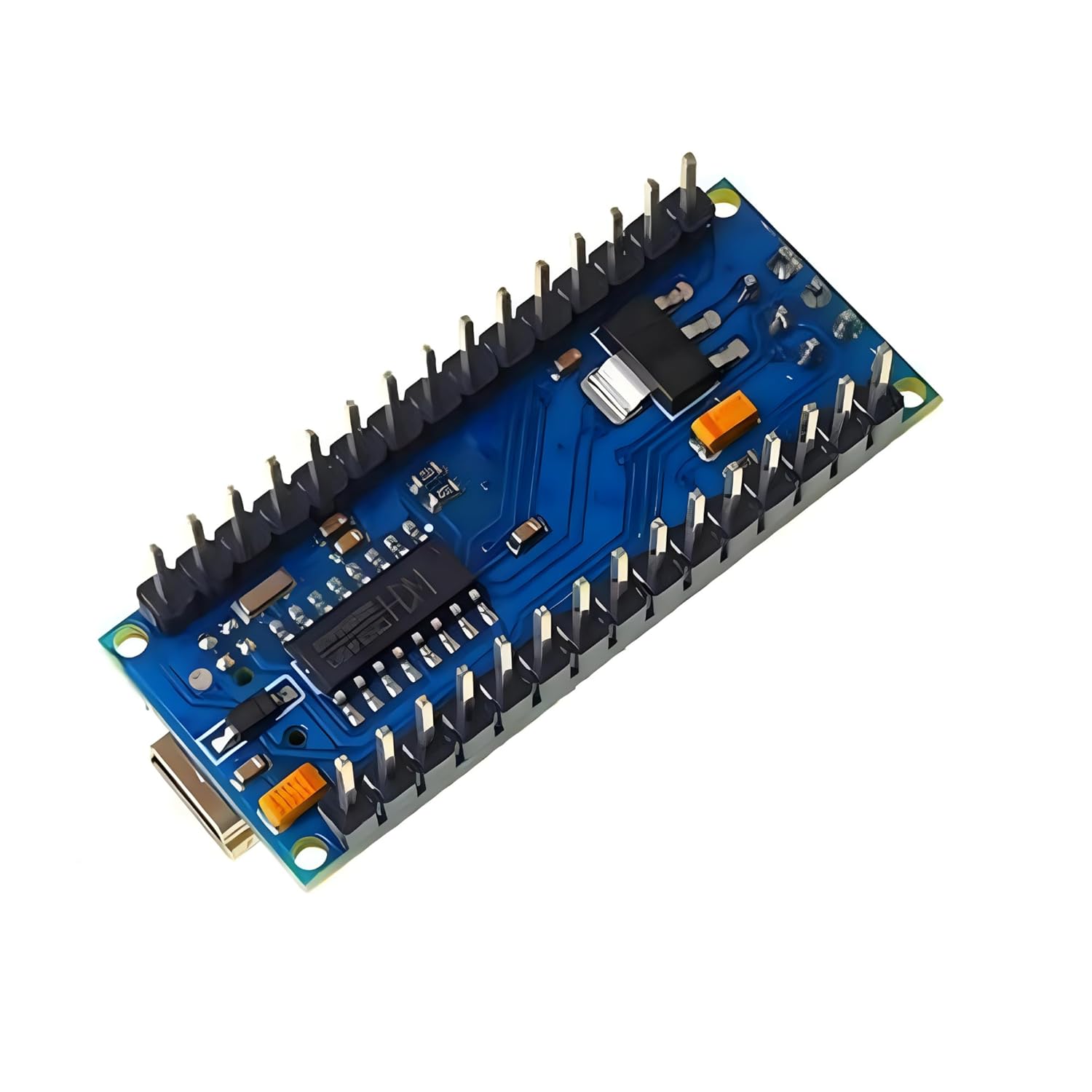

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 . It has more or less the same functionality of the uno board, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.

Specifications

Microcontroller ATmega328P Operating Voltage 5V Input Voltage (recommended) 7-12V Digital I/O Pins 14 (of which 6 provide PWM output) Analog Input Pins 8 DC Current per I/O Pin 40 mA Flash Memory 32 KB (ATmega328P) of which 2 KB used by bootloader SRAM 2 KB (ATmega328P) EEPROM 1 KB (ATmega328P) Clock Speed 16 MHz

Troubleshooting & Overheating Issues

Check Power Supply: Use a stable 5V, 1A power source.Use a Heatsink: Attach a heatsink to reduce heat.Ventilation: Ensure good airflow around the module.USB Cable Quality: Use a high-quality, short USB cable to prevent power drops and communication errors.External Hardware: To prevent issues like overheating or damaging your Arduino Nano, ensure you know the correct pin mappings before connecting external hardware. Misconnecting components can lead to short circuits, excessive current draw, or even permanent damage to the microcontroller. Always reference the Arduino Nano pinout diagram for accurate pin assignments when interfacing with peripherals.

Trusted & Tested Product

This Product Has Passed Through The Below Testing Stages

Visual InspectionPower On TestConnectivity TestFunctonal TestingPerformance Testing

Operating Voltage : (logic level) 5 V
Flash Memory : 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
Atmel ATmega168 or ATmega328
