Q670 8-Bay NAS Motherboard is Suitable for Processor 12/13/14 Generation CPU |3X M.2 NVMe|8X SATA3.0|2X Intel 2.5G Network Port

Price: ₹74,045 - ₹67,315.00
(as of Oct 04, 2024 05:30:20 UTC – Details)

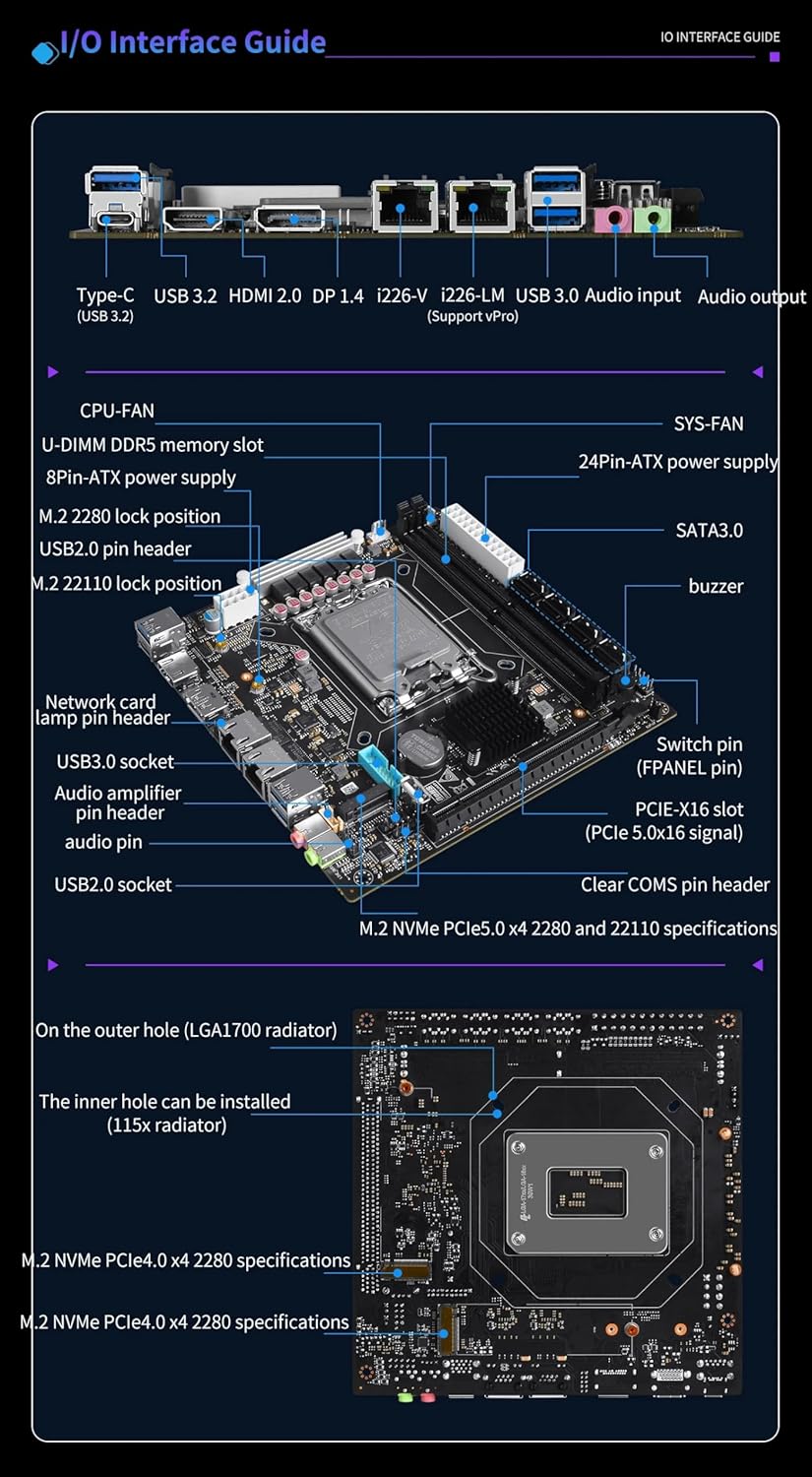

Reminder: The product will self check the memory when it is first turned on, and the startup may be slower. Please pay attention. Support Intel 12/13/14 generation desktop processor TDP65W up to 125W power consumption 17*17 standard Mini-ITX form factor compatible with 115x/1700 series CPU coolers 1*PCI-E x16 slot PCle5.0 x16 signal supports expansion of graphics card/network card etc. 2 *M.2 NVMe (PCle4.0 x4) slots 2280 size (back of motherboard) 1* M.2 NVMe (PCle5.0 x4) slot 2280/22110 size (front of motherboard) Onboard 8 native SATA3.0 6GB/s interfaces Dual-channel desktop U-DIMM DDR5 slot supports5600MHz backward compatibility by default 1* Intel i226-V 2.5G RJ45 network port 1* Intel i226-LM 2.5G RJ45 network port supports Intel vPro remote management function HDMI+DP dual display output supports 4K@60HZ 2*USB3.0 interface 1*USB3.2 interface 1*Type-C20Gbpsrate Built-in set of USB3.0 and USB2.0 pin sockets can be connected to the panel through connecting cables A built-in 1*USB2.0 socket supports U disk encryption and other applications and some system booting ATX 24PIN+ 4PIN ATX power supply Operating temperature:-20~60 degrees Celsius Storage temperature: -20~60 degrees Celsius Working humidity:0~90% RH, relative humidity without condensation Storage humidity: 0~90% RH, relative humidity without condensation PCB specifications: Board size MINI-ITX (170*170mm)
NAS Motherboard: DIY firewall micro appliance，secure your network with a compact.
Support Intel 12/13/14 generation desktop processor TDP65W up to 125W power consumption
1* Intel i226-V 2.5G RJ45 network port 1* Intel i226-LM 2.5G RJ45 network port supports Intel vPro remote management function
2*M.2 NVMe (PCle4.0 x4) slots 2280 size (back of motherboard) 1* M.2 NVMe (PCle5.0 x4) slot 2280/22110 size (front of motherboard) Onboard 8 native SATA3.0 6GB/s interfaces
17*17 standard Mini-ITX form factor compatible with 115x/1700 series CPU coolers 1*PCI-E x16 slot PCle5.0 x16 signal supports expansion ofgraphics card/network card etc. Dual-channel desktop U-DIMM DDR5 slot supports5600MHz backward compatibility by default 2*USB3.0 interface 1*USB3.2 interface 1*Type-C 20Gbps rate Built-in set of USB3.0 and USB2.0 pin sockets can be connected to the panel through connecting cables A built-in 1*USB2.0 socket supports U disk encryption and other applications and some system booting
