Sipeed Nezha 64bit RISC-V Linux SBC Development board, Allwinner D1@1.0GHz with 1GByte DDR3, Support Tina/Debian system

Price: ₹44,240 - ₹40,220.00
(as of Oct 09, 2024 09:59:13 UTC – Details)

Introduction

RISC-Vis a trending now, we have seen more and more RV32 chips last few years, but theRV64 chip which able to run standard Linux System is rare and expensive.

Now, we have an affordable choice for 64bit RISC-V SBC: Nezha.

Nezha is IoT-friendly
Nezha is not designed for heavy computation applications but designed for the RV64opensource community and loT application.

lt is easily run without a heatsink, and the temperature is below 50℃, chip power consume <0.1A@5V Nezha has most of the peripherals you need in loT applications: MIPI LCD, HDMI, USB,ETH,SPI/UART/IIC/PWM/LEDC/mIS/GPIOs. You can build your projects easily and quickly. Nezha is open-source
Nezha has an open-source SDK thus that will allow us to port Debian Desktop System to it,and we can test many popular program environments on it: C/C++,JS, WASM,Rust, GoLang, Python, etc.

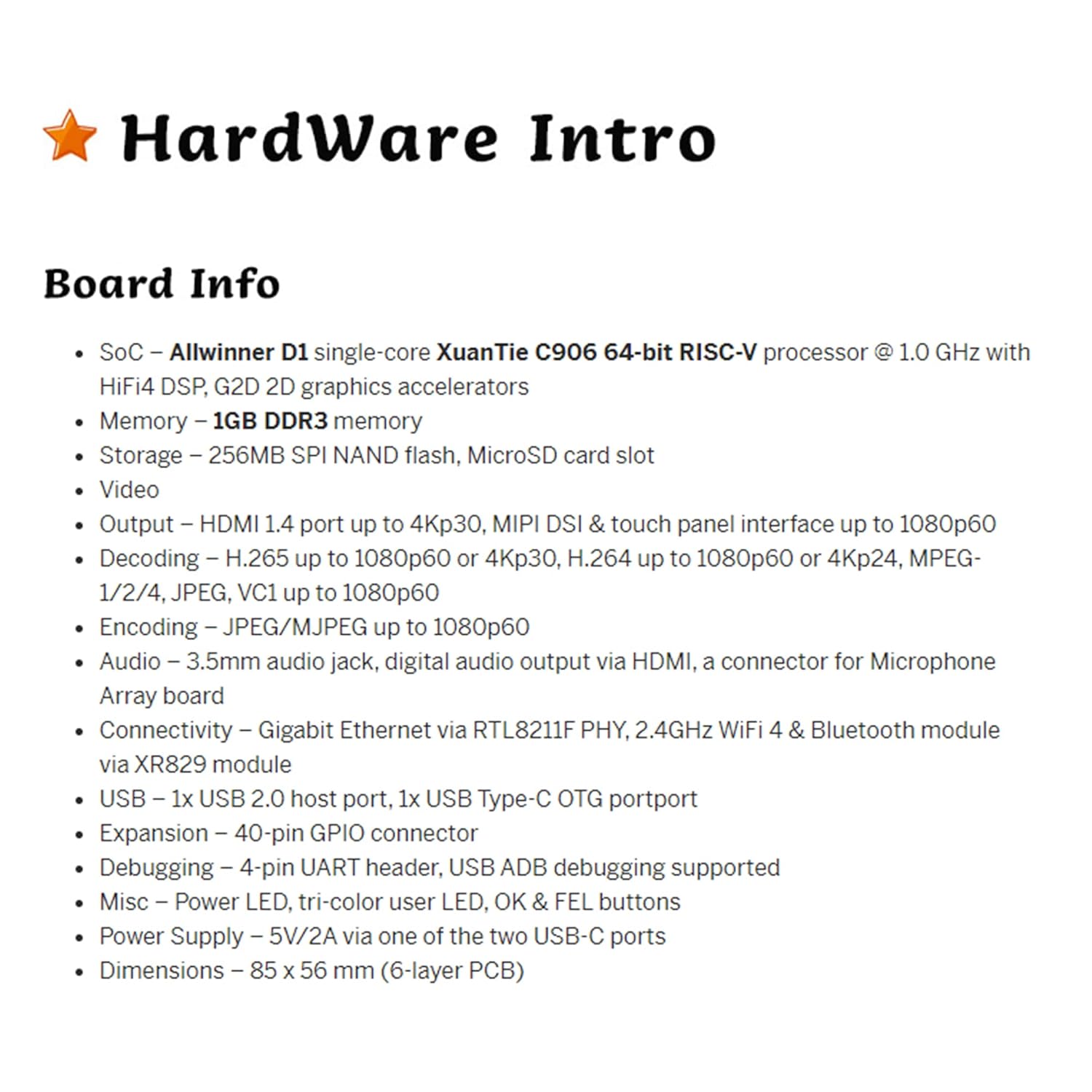

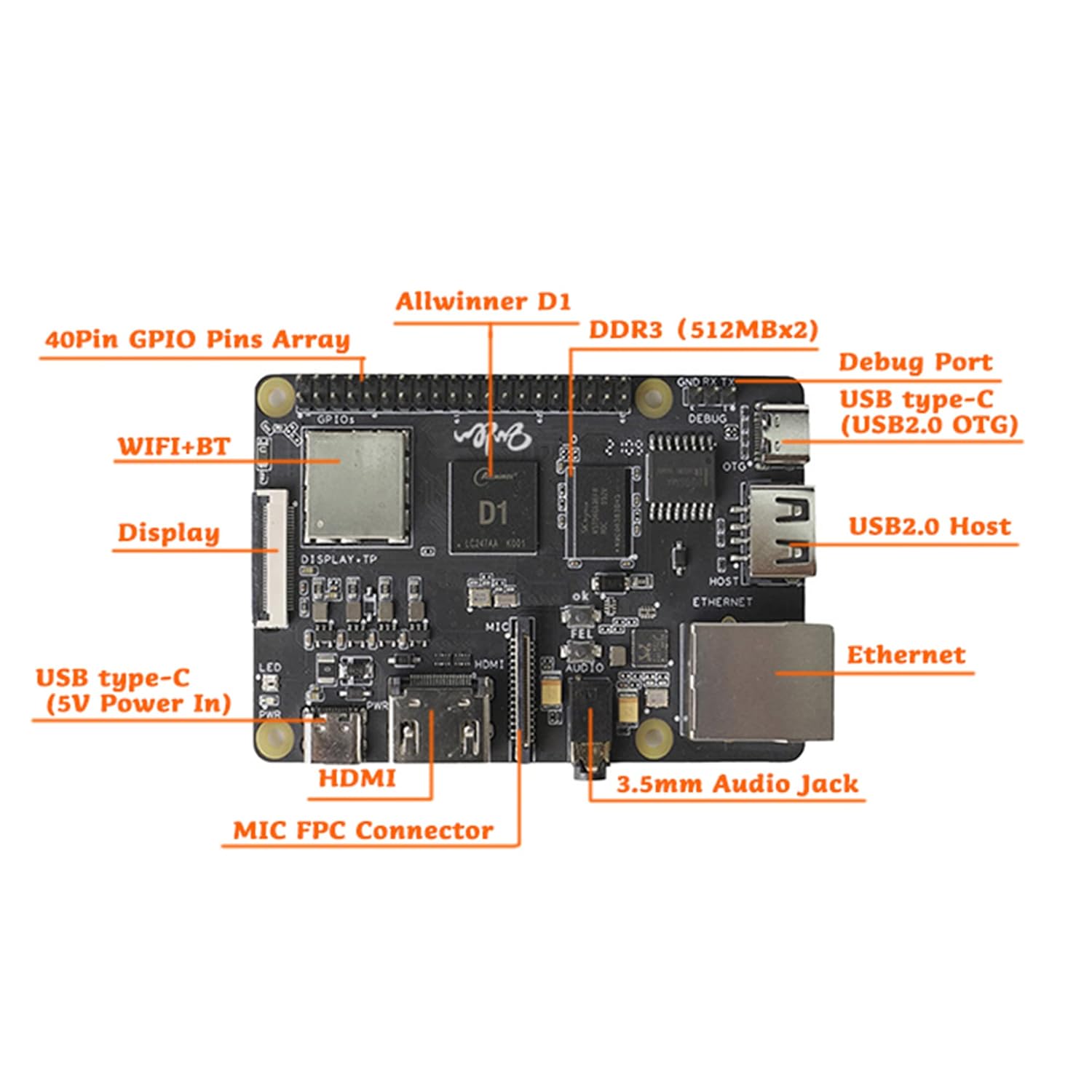

Board Information

-SoC-Allwinner D1 single-core XuanTie c906 64-bit RISC-V processor @ 1.0 GHz withHiFi4 DSP,G2D 2D graphics accelerators
-Memory – 1GB DDR3 memory
-Storage – 256MB SPI NAND flash, MicroSD card slot. Video
-Output- HDMl 1.4 port up to 4Kp30,MIPI DSl & touch panel interface up to 1080p60.Decoding – H.265 up to 1080p60 or 4Kp30,H.264 up to 1080p60 or 4Kp24,MPEG-1/2/4,JPEG,VC1 up to 1080p60
-Encoding -JPEG/MJPEG up to 1080p60
-Audio – 3.5mm audio jack, digital audio output via HDMl, a connector for MicrophoneArray board
-Connectivity -Gigabit Ethernet via RTL8211FPHY,2.4GHZ WiFi 4 & Bluetooth modulevia XR829 module
-USB-1x USB2.0 host port,1x USB Type-C OTG portport
-Expansion – 40-pin GPIO connector
-Debugging – 4-pin UART header, USB

SoC-Allwinner D1 single-core XuanTie c906 64-bit RISC-V processor @ 1.0 GHz withHiFi4 DSP,G2D 2D graphics accelerators
Memory – 1GB DDR3 memory
Storage – 256MB SPI NAND flash, MicroSD card slot. Video
Output- HDMl 1.4 port up to 4Kp30,MIPI DSl & touch panel interface up to 1080p60.Decoding – H.265 up to 1080p60 or 4Kp30,H.264 up to 1080p60 or 4Kp24,MPEG-1/2/4,JPEG,VC1 up to 1080p60
Audio – 3.5mm audio jack, digital audio output via HDMl, a connector for MicrophoneArray board
USB-1x USB2.0 host port,1x USB Type-C OTG portport
