TRIDEV TRADERS My TRIDEV 36V 15A 540W Power Supply Adapter Transformer Switch AC 110V / 220V to 36Volt 15amp for Power Supply Strip CCTV Camera Security System Computer Project (36V15A540W)

Price: ₹5,000 - ₹3,499.00
(as of Oct 03, 2024 08:16:18 UTC – Details)

Product Description

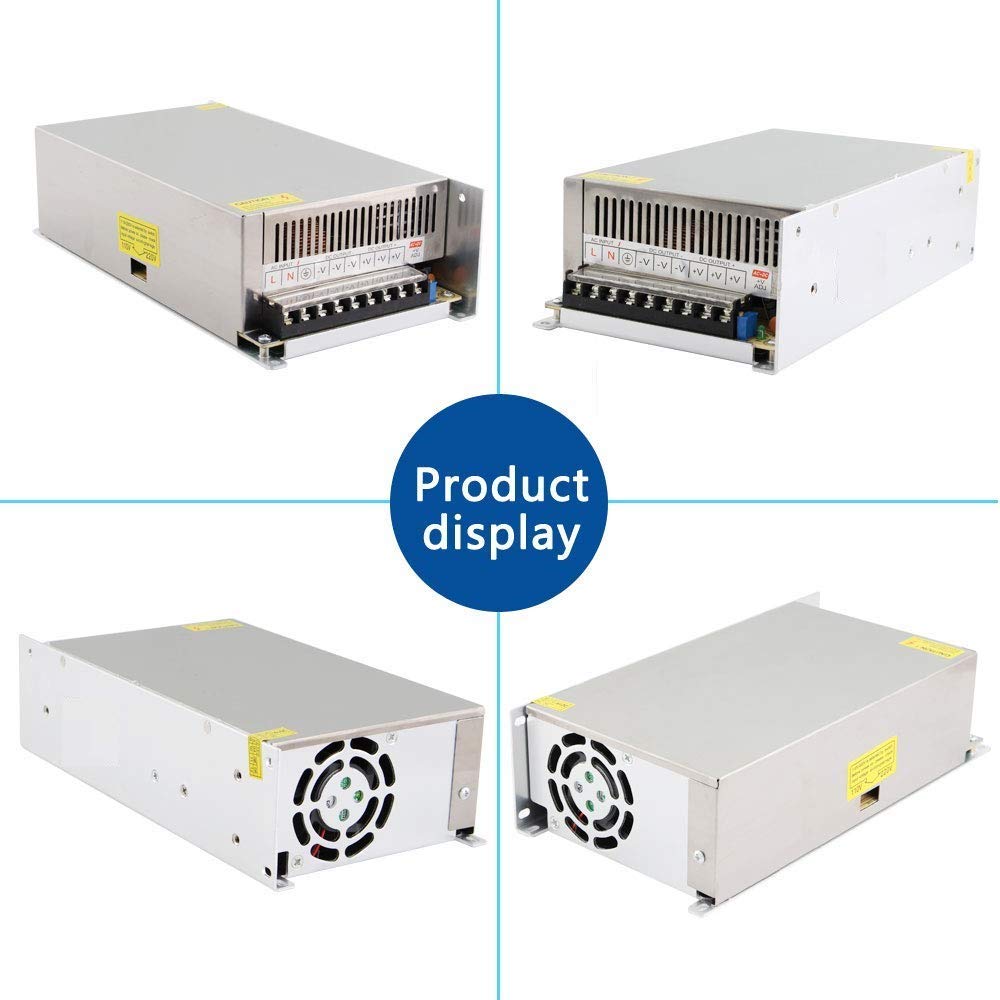

36VOLT 15AMPS 540WATTS SWITCHING POWER SUPPLY

Parameter

Input: AC 100V~120V / 200V~260V 50/60HzOutput Voltage : DC 36V ( ±10% adjustable)Output Current: 15A maxOutput Wattage: 540W maxFix Screw Hole Diameter: 2.5mm (0.1inch)Working temperature: -10℃ ~50℃ （-50 ℉ ~ 122℉）Storage temperature: -20℃ ~ 60℃ （-68 ℉ ~ 140℉）Environmental humidity: 10-95%

Kindly note

We suggest the max use of power should be no more than 80% of the full loads, other wise, the power supply’s span life will be shortened. We recommend you to use this 36V 15A 540W power supply to power devices less than 400W.110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 110V for USA/CA and 220V for INDIA.

Package included

1 x 36V 15A Power Supply

Superior Safety

Built-in safeguards to protect against over voltage, over current, overheat, short-circuit, which will provide ultimate protection for you and your devices.

Stable Output

The shell is made of aluminum. Built in cooling fan can enhance air convection and speed up heat dissipation. Premium quality materials make it more solid and durable.

Three Output Channels

With three independent output channels, it can power more devices. The maximum output of each channel can reach 15A 540W. Total output power of the three channels is 15A 540W.

Premium Quality

The shell is made of aluminum. Built in cooling fan can enhance air convection and speed up heat dissipation. Premium quality materials make it more solid and durable.

HOW TO USED POWER SUPPLY

Input wire has to be connected L & N point, if there is an earthing wire then you can also use that.Check whether the led light on the right side is on.Put v- negative wire at the output point (wire color can be black), then you put positive wire on v+, (the color of the wire can be red)With the help of adjustable switch in this power supply, you can up and down the voltage up to 10% (keep in mind that it can become free by using more)

Connection:-

L: FireWireN: zero lineG: ground wire- V: load negative+ V: load positive

Kindly Notes:-

High Voltage inside ,do not remove the cover. Qualified service personnel onlyIn-door use only, for this switch power supply is not waterproof110V/220V must be selected by switch before using to avoid damaging. Please change the switch to 220V for india.The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan runs, the louder the noiseExternal power supply round hole mesh heat vents, in the range of 50cm within the outlet Do not place other flammable items.5 cm in the product range not place other items, to ensure that the power supply has good thermal environment, to ensure safety.Please accurately calculate the load power, do not overload. When the power is working, do not touch the case.Do not short-circuit output if no output, please use off one minute re-energized.Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.Professional installation of qualified electrician is highly recommended.

MY TRIDEV DC 36V 15A 540W Power Supply Adapter Transformer Switch AC 110V / 220V to DC 36Volt 15amp for Power Supply Strip Light CCTV Camera Security System Computer Project (36V15A540W)
