-9%
Price: ₹26,870 - ₹24,425.00
(as of Oct 16, 2024 10:29:34 UTC – Details)
How to Use:
Specification:

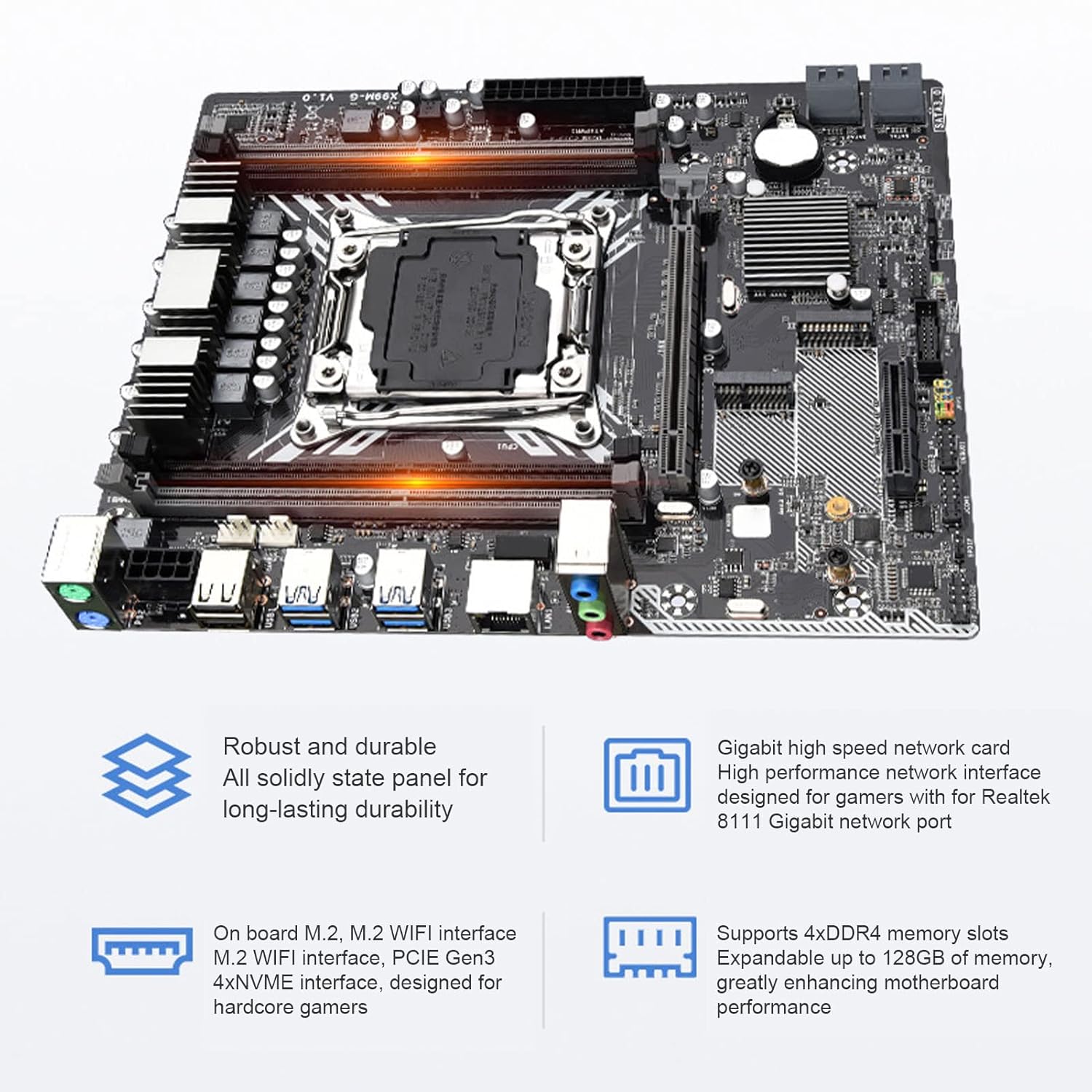

Item Type: X99M G Motherboard
Material: PCB
Model: X99M G
Motherboard Architecture: M ATX
Motherboard Size: Approx. 242 x 200mm / 9.5 x 7.9in
CPU Slot Type: Support for LGA 2011 3 V3 V4 Processors
NIC: Gigabit Network Card
Graphics Card Slot: PCIE 16Xx1, PCIE 8Xx1
Supported Memory Type: 4xDDR4
Maximum Memory Capacity: 128GB
SATA Interface: SATA3.0x4, M.2 NVME Interface x 1
USB Interface: USB3.0x6 (Front USB3.0x2), USB2.0x4 (Front USB2.0x2)
PS 2 Interface: PS 2 Mouse Keyboard Interface
On Board Sound Card: ACL662 5.1 Channel
Power Connector: 24pin x 1, x 1
Other Interfaces: PCIE 4Xx1, M.2 WiFi Interface x1, COM Pin x1
Battery Type: CR2032 Button Cell (Ship with Inbuilt Battery)
Battery Capacity: 240mAh
Fix the Motherboard in the Main Case, and then Connect the Connectors According to the Corresponding Marks.
No Power on Problem: When the device won’t power on and the power indicator doesn’t light up, make sure the power supply is connected and working properly. If your CPU fan is installed correctly, you can also determine whether the power supply is working properly by judging whether the fan can work properly.
Package List:
1 x Motherboard
1 x SATA Cable
1 x Bezel
CPU Slot Type: X99M G desktop gaming motherboard, extended M.2 and M.2 WiFi hard drive interface, supports for intel for XEON E5 for LGA20113 V3/V4 CPU
DDR4 Memory: PC motherboard supports 4xDDR4 memory slots, expandable up to 128GB of memory, greatly improving motherboard performance
Professional Design: Gaming motherboard with for Realtek 8111 Gigabit NIC, a high performance network interface designed for gamers.
Interface: M.2 WiFi interface, PCIE Gen3 4X NVME interface, PCIE 4Xx1, M.2 WiFi interfacex1, COM pinx1, SATA3.0x4, M.2 NVME interfacex1
PCB Material: All solidly state panel, PCB material, long time use without deformation, thus ensuring long term stability.
