SHANGZHAOYUAN H610 Motherboard LGA 1700 (μATX, 2*DDR4 Slots, SATA 3.0, USB 3.1, NVME M.2, 2.5Gb LAN, PCIe 5.0) for 12th 13th gen Intel Core i3 i5 i7 i9/Pentium/Xeon Processors

Price: ₹20,378 - ₹15,378.00
(as of Oct 06, 2024 06:21:27 UTC – Details)

SHANGZHAOYUAN H610 Swordsman providing the solid foundation needed and a range of performance tuning options for your first build.

LGA 1700 Socket
Supports Intel 12th/13th Gen Core/Pentium/Celeron series processors.

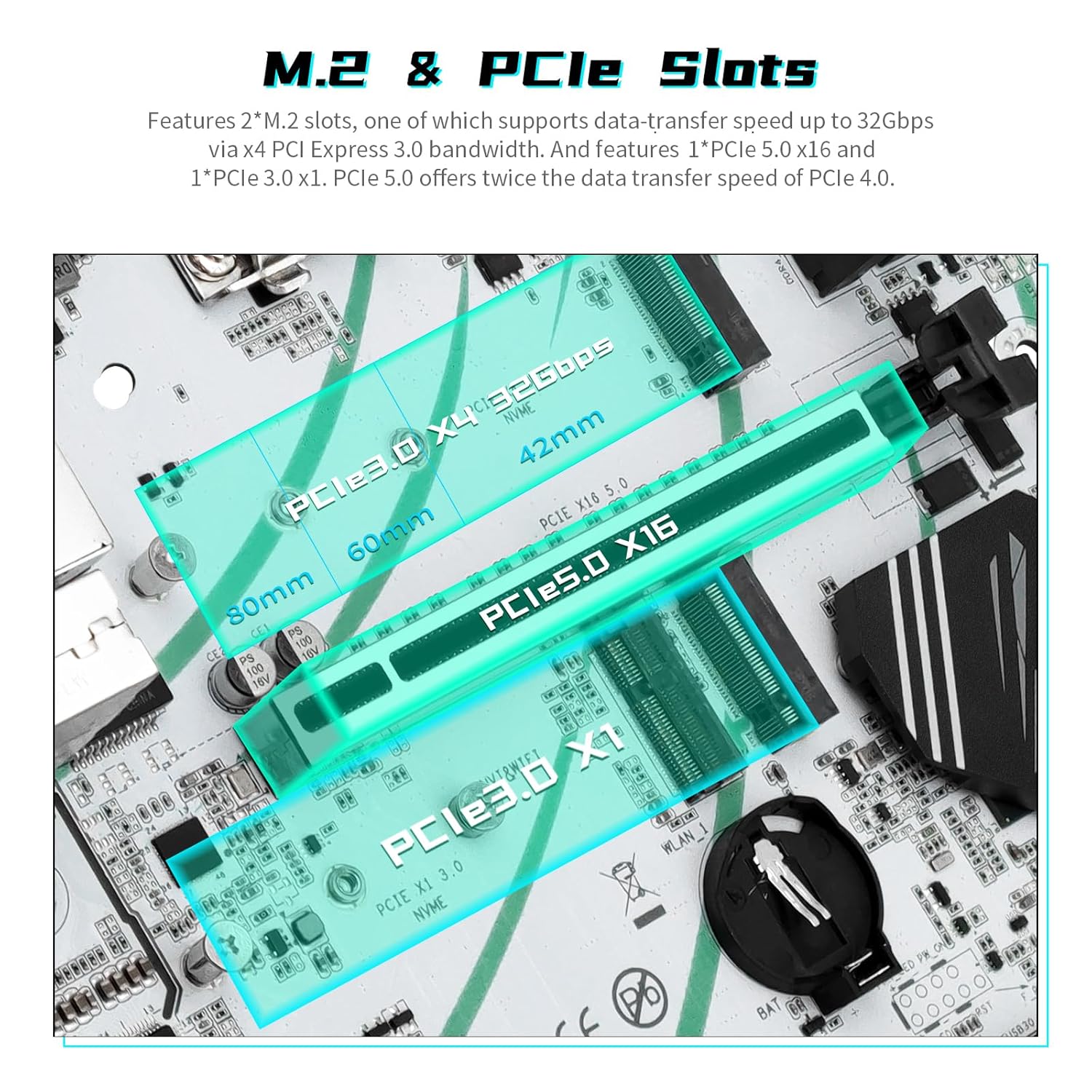

Two M.2 Slots
Features two M.2 slots, one of that support data transfer speeds of up to 32Gbps via PCIe 3.0. It‘s a good choice for an operating system or application drive, providing fast access to data.

PCIe 5.0 Slot
PCle 5.0 offers data transfer speed up to 128GB/s(32GT/s), twice as fast as PCle 4.0.

Dual Channel DDR4
Supports dual-channel DDR4 memory up to 64GB (2133/2400/2666/3200MHz).

2.5G LAN
Maximum data transfer with 2.5G LAN, giving you the best online experience with low latency.

Support 2.5G network card. Connect to the Wi-Fi and surf the web without worry.

Robust Power Design
10-phase power supply and 24+8pin power connectors. Sustain maximum performance via stable power delivery.

Excellent Heat Dissipation
Three heatsinks with underneath thermal pads improve heat transfer for better cooling performance, so the computer can work stably under high load.

H610 Swordsman Specification:
Chipset: H610
CPU Socket: LGA 1700
RAM Slot: 2*DDR4
Memory Capacity: 64GB(32GB*2)
USB Port: 4*USB 2.0; 2*USB 3.2
Network: 1*2.5Gb LAN
M.2 Slot: 2*NVME M.2
PCIe Slot: 1*PCIe X16; 1*PCIe X1
Display Interface: DP; HDMI; VGA
Power Connector: 24Pin+8Pin
FAN Interface: 3*4Pin
SATA Interface: 4*SATA 3.0
Other Interfaces: PS/2; Audio
Sound Card: ALC 897
Buzzer: Yes
PCB: 10-layer
Power Supply: 10-phase
Size: 240mm*180mm
LGA 1700 Motherboard: Intel series LGA 1700 socket design, support 12th and 13th gen Core i9/i7/i5/i3/Pentium/Celeron series processors. (e.g. i9-13900h, i7-13700kf, i5-13400f, i9-12900kf, i7-12700k, i5 12600k, i5-12400, i5-12490, i3-12100f, g7400t, g6900, etc.)
Dual-channel DDR4: The μATX motherboard features 2 DIMM slots, supports Dual Channel DDR4 memory up to 64 GB (2133/2400/2666/3000/3200MHz). A fully-isolated memory circuit for optimal gaming performance
Stable Power Supply: 10-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the DDR4 motherboard is equipped with 24+8 pin power interface (please use a brand power supply of at least 500w)

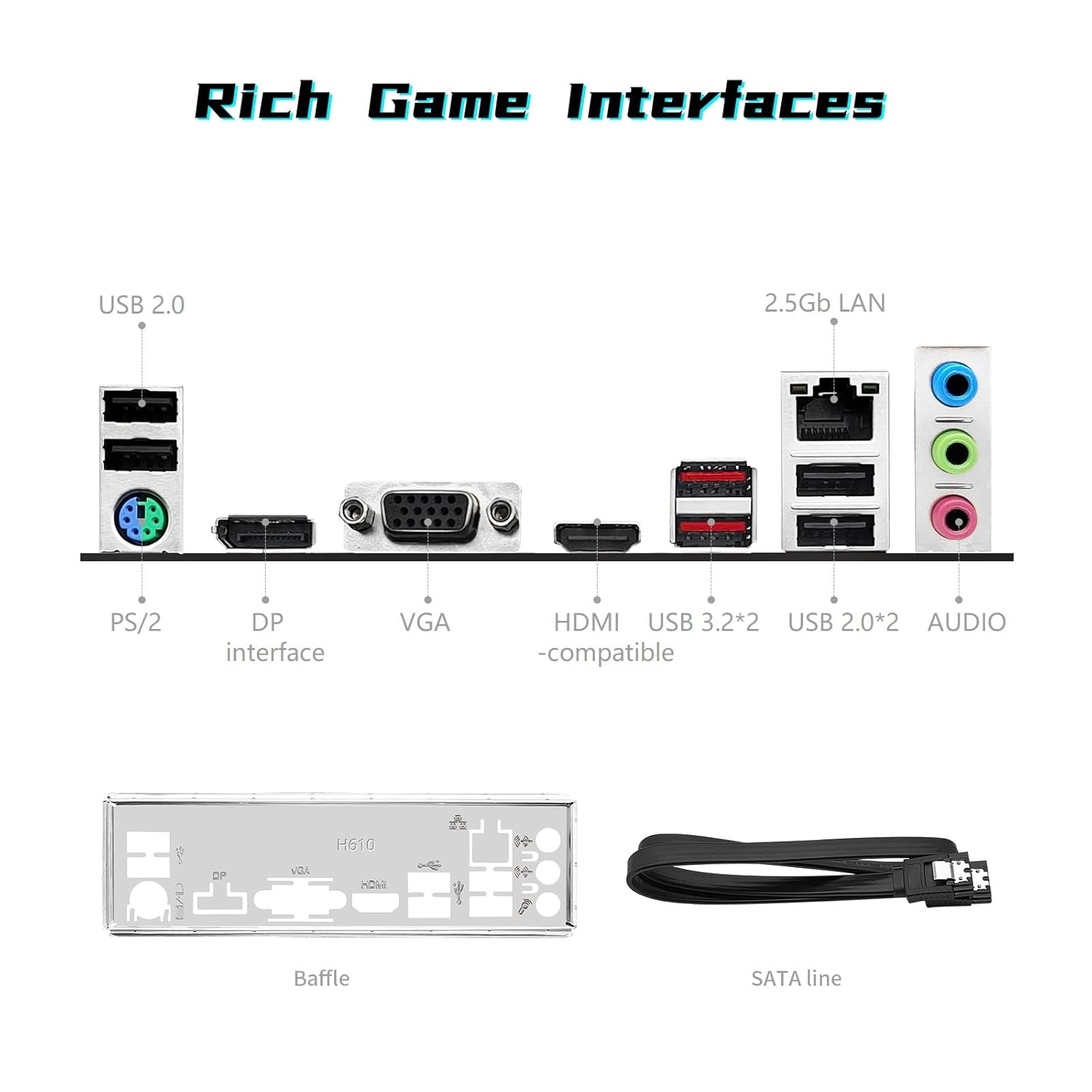

Ultimate Gaming Connectivity: The lga1700 motherboard features HDMI-compatible, VGA and DP high-definition multimedia transmission Interfaces, 2.5Gb LAN interface, and M. 2 slot (NVMe SSD), PCIe 5.0 X16, SATA 3.0, USB 3.2, USB 2.0
High Performance Motherboard: The Intel gaming motherboard is equipped with H610 chipset, 10-layer PCB material that increases conductivity and improves heat dissipation and performance reliability. And with Heat dissipation armor protection for strong heat dissipation, to ensure stable bus communication
Package Lists: 1* H610 motherboard, 1*SATA cable, 1*I/0 shield. IMPORTANT: The package does not contain a user manual. If you need the user manual file, please download it from the bottom of the product description page or ask us on Amazon to get it.
Warm Tips: If no display, no boot, no screen, no network card, no sound card, etc., please ask us on Amazon for help. It is recommended driver download: Driver Talent. or use Win 10 system, it can help you solve all the driver problems.
